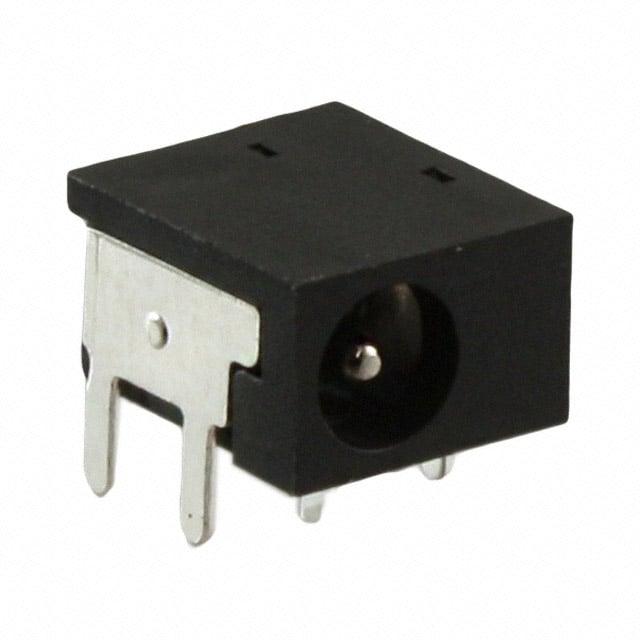

PJ-053DH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Current Rating (Amps) :

3.5A

Published :

2011

Body Color :

Black

Industry Recognized Mating Diameter :

1.30mm ID (0.051), 3.40mm OD (0.134)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Contact Plating :

Nickel

Material Flammability Rating :

UL94 V-0

Gender :

Male

Feature :

Board Guide

Min Operating Temperature :

-25°C

Mount :

Through Hole

Mounting Type :

Through Hole, Right Angle

Connector Type :

JACK

Internal Switch(s) :

Single Switch, Normally Closed

Flammability Rating :

UL94 V-0

Mating Length/Depth :

0.244 6.20mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Voltage - Rated :

24VDC

Housing Color :

Black

Color :

Black

Insulation Resistance :

100MOhm

Orientation :

Horizontal

Operating Temperature :

-25°C~85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Termination :

Solder

Max Operating Temperature :

85°C

Number of Conductors :

2

Current Rating :

3.5A

Contact Material :

Brass, Copper Alloy

Contact Material - Plating :

Silver

Lead Free :

Lead Free

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Shielding :

Unshielded

Factory Lead Time :

11 Weeks

Actual Diameter :

0.051 (1.30mm ID), 0.154 (3.90mm OD)
