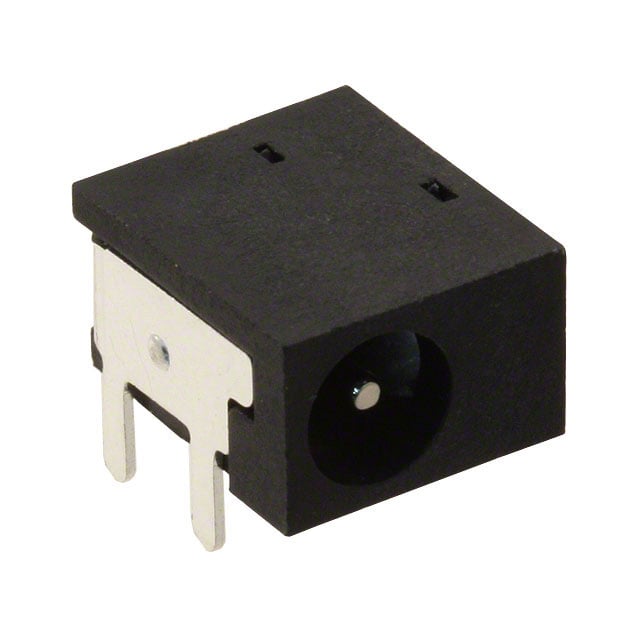

PJ-053CH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Color :

Black

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Lead Free :

Lead Free

Contact Gender :

Male

Contact Material :

Brass, Copper Alloy

Max Operating Temperature :

85°C

Insulation Resistance :

100MOhm

Voltage - Rated :

24VDC

Min Operating Temperature :

-25°C

Mount :

Through Hole

Gender :

Male

Mating Length/Depth :

0.244 6.20mm

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

JACK

Current Rating :

3.5A

Industry Recognized Mating Diameter :

1.00mm ID (0.039), 3.40mm OD (0.134)

Feature :

Board Guide

RoHS Status :

RoHS Compliant

Current Rating (Amps) :

3.5A

Operating Temperature :

-25°C~85°C

Body Color :

Black

Housing Color :

Black

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

11 Weeks

Contact Material - Plating :

Silver

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Number of Conductors :

2

Actual Diameter :

0.039 (1.00mm ID), 0.154 (3.90mm OD)

Housing Material :

Polyamide (PA66), Nylon 6/6

Orientation :

Horizontal

Internal Switch(s) :

Single Switch, Normally Closed

Contact Plating :

Nickel

Packaging :

Bulk

Shielding :

Unshielded

Published :

2011
