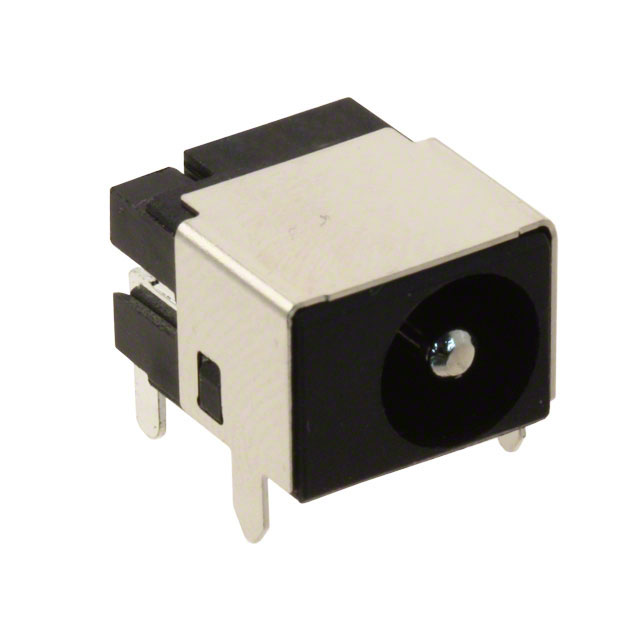

PJ-051A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Termination :

Solder

Number of Conductors :

2

Internal Switch(s) :

Single Switch, Normally Closed

Body Color :

Black

Material Flammability Rating :

UL94 V-0

Insulation Resistance :

100MOhm

Mounting Type :

Through Hole, Right Angle

Current Rating (Amps) :

2.5A

Contact Plating :

Nickel

Mating Length/Depth :

0.323 8.20mm

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Housing Material :

Polybutylene Terephthalate (PBT)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Flammability Rating :

UL94 V-0

Gender :

Male

Operating Temperature :

-25°C~85°C

Published :

2011

Housing Color :

Black

Max Operating Temperature :

85°C

Mount :

Through Hole

Factory Lead Time :

11 Weeks

Shielding :

Shielded

Contact Gender :

Male

Actual Diameter :

0.079 (2.00mm ID), 0.236 (6.00mm OD)

Min Operating Temperature :

-25°C

Voltage - Rated :

24VDC

Current Rating :

2.5A

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Contact Material - Plating :

Tin

Contact Material :

Brass, Copper Alloy

Feature :

Board Guide

Color :

Black

Orientation :

Horizontal

Lead Free :

Lead Free

Connector Type :

JACK
