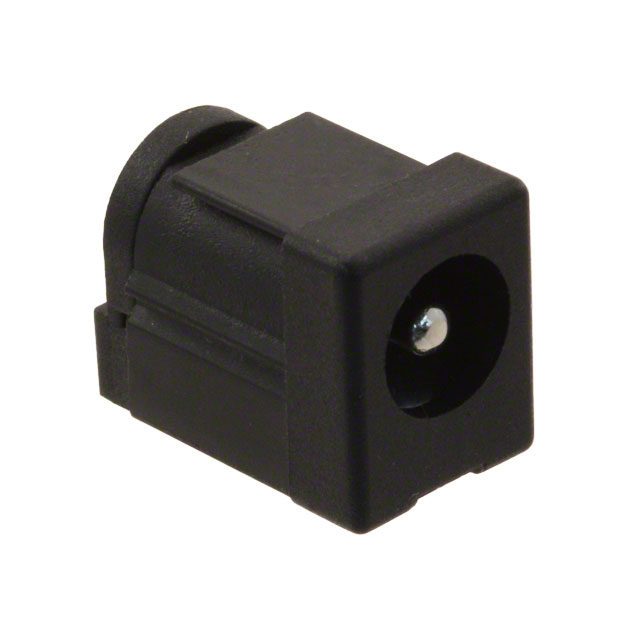

PJ-050A
Or copy the link below:
- Mfr.Part #
- PJ-050A
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN PWR JACK 2X5.5MM SOLDER
- Stock
- 20,902
- In Stock ：
- 20,902
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Max Operating Temperature :
- 85°C
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Insulation Resistance :
- 100MOhm
- RoHS Status :
- RoHS Compliant
- Contact Material - Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Conductors :
- 2
- Operating Temperature :
- -25°C~85°C
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- Brass, Copper Alloy
- Actual Diameter :
- 0.079 (2.00mm ID), 0.236 (6.00mm OD)
- Factory Lead Time :
- 11 Weeks
- Min Operating Temperature :
- -25°C
- Orientation :
- Horizontal
- Connector Type :
- JACK
- Internal Switch(s) :
- Single Switch, Normally Closed
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Packaging :
- Bulk
- Mating Length/Depth :
- 0.335 8.50mm
- Shielding :
- Unshielded
- Gender :
- Male
- Contact Plating :
- Nickel
- Mount :
- Through Hole
- Color :
- Black
- Body Color :
- Black
- Contact Gender :
- Male
- Termination :
- Solder
- Industry Recognized Mating Diameter :
- 2.10mm ID (0.083), 5.50mm OD (0.217)
- Current Rating (Amps) :
- 2.5A
- Housing Color :
- Black
- Current Rating :
- 2.5A
- Voltage - Rated :
- 24VDC
- Published :
- 2011
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- PJ-050A
