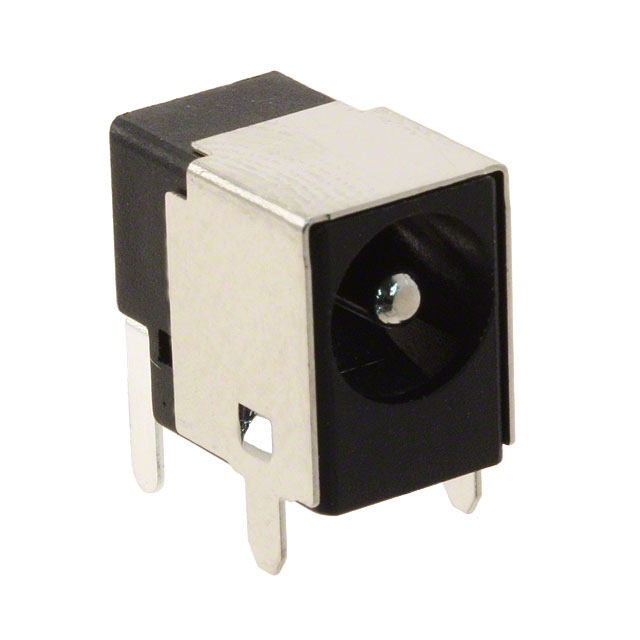

PJ-047AH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Contact Plating :

Nickel

Body Color :

Black

Max Operating Temperature :

85°C

Flammability Rating :

UL94 V-0

Contact Material - Plating :

Nickel, Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

2

Feature :

Board Guide

Voltage - Rated :

24VDC

Factory Lead Time :

11 Weeks

Operating Temperature :

-25°C~85°C

Shielding :

Shielded

Current Rating :

5A

Internal Switch(s) :

Single Switch, Normally Closed

Gender :

Male

Connector Type :

JACK

Mount :

Through Hole

Current Rating (Amps) :

5A

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole, Right Angle

Published :

2011

Min Operating Temperature :

-25°C

Insulation Resistance :

100MOhm

Housing Color :

Black

Termination :

Solder

Mating Length/Depth :

0.327 8.30mm

Packaging :

Tray

Lead Free :

Lead Free

Orientation :

Horizontal

Contact Material :

Brass, Copper Alloy

Actual Diameter :

0.079 (2.00mm ID), 0.236 (6.00mm OD)

Material Flammability Rating :

UL94 V-0

Housing Material :

Polybutylene Terephthalate (PBT)

Color :

Black

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Contact Gender :

Male
