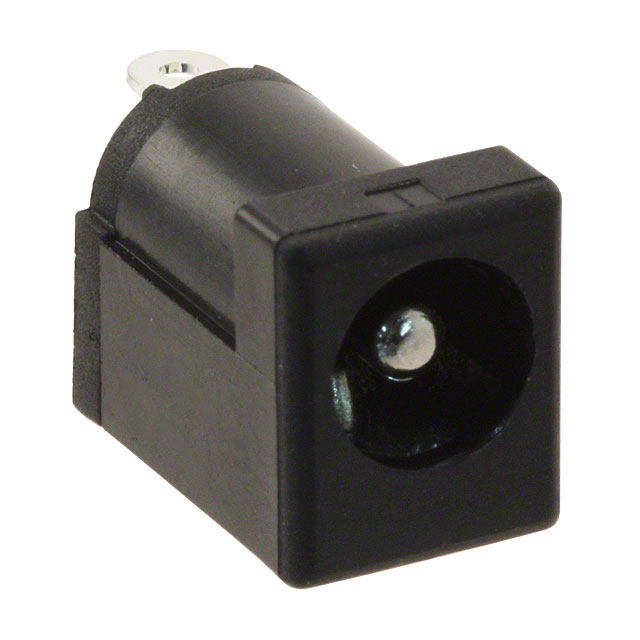

PJ-044B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Current Rating (Amps) :

2.5A

Shielding :

Unshielded

Connector Type :

JACK

Internal Switch(s) :

Single Switch, Normally Closed

Contact Plating :

Nickel

Mounting Type :

Through Hole

Orientation :

Vertical

Housing Color :

Black

Termination :

Solder Eyelet(s)

Published :

2011

Housing Material :

Polybutylene Terephthalate (PBT)

Min Operating Temperature :

-25°C

Contact Gender :

Male

Contact Material - Plating :

Tin

Contact Material :

Brass, Copper Alloy

Mount :

Through Hole

Lead Free :

Lead Free

Flammability Rating :

UL94 V-0

Number of Conductors :

2

Voltage - Rated :

24VDC

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-25°C~85°C

Actual Diameter :

0.079 (2.00mm ID), 0.256 (6.50mm OD)

Packaging :

Bulk

Mating Length/Depth :

0.354 9.00mm

Factory Lead Time :

11 Weeks

RoHS Status :

RoHS Compliant

Current Rating :

2.5A

Feature :

Board Guide

Insulation Resistance :

100MOhm

Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Male

Max Operating Temperature :

85°C

Body Color :

Black
