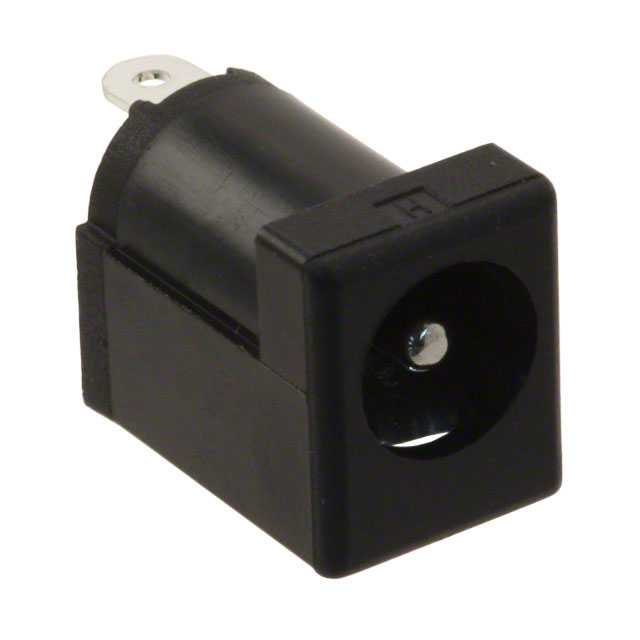

PJ-044A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Height :

14.4mm

Shielding :

Unshielded

Contact Material :

Brass, Copper Alloy

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Color :

Black

Max Operating Temperature :

85°C

Number of Conductors :

2

Current Rating :

2.5A

Feature :

Board Guide

Contact Material - Plating :

Tin

Mating Length/Depth :

0.354 9.00mm

Flammability Rating :

UL94 V-0

Insulation Resistance :

100MOhm

Housing Color :

Black

Color :

Black

Actual Diameter :

0.079 (2.00mm ID), 0.256 (6.50mm OD)

Contact Plating :

Nickel

Current Rating (Amps) :

2.5A

Termination :

Solder Eyelet(s)

Orientation :

Vertical

Mount :

Through Hole

Housing Material :

Polybutylene Terephthalate (PBT)

Number of Contacts :

3

Contact Gender :

Male

Factory Lead Time :

11 Weeks

Mounting Type :

Through Hole

RoHS Status :

RoHS Compliant

Material Flammability Rating :

UL94 V-0

Internal Switch(s) :

Single Switch, Normally Closed

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Connector Type :

JACK

Voltage - Rated :

24VDC

Packaging :

Bulk

Min Operating Temperature :

-25°C

Gender :

Male

Lead Free :

Lead Free

Published :

2011

Operating Temperature :

-25°C~85°C

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)
