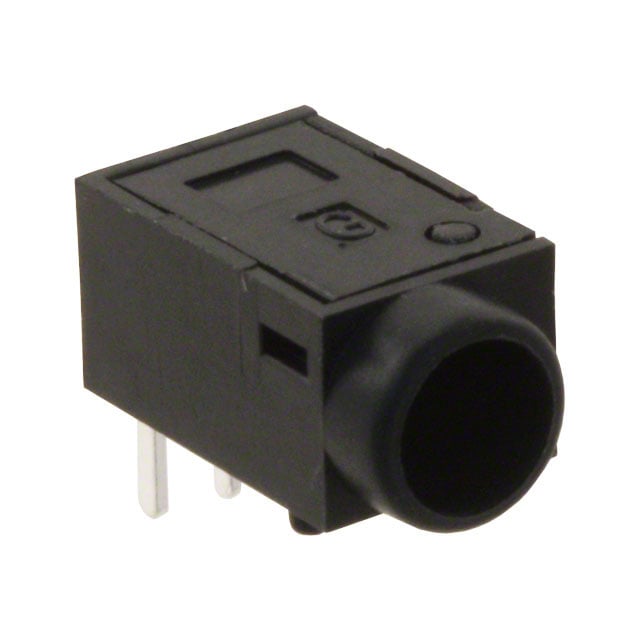

PJ-040DH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Contact Gender :

Male

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Orientation :

Horizontal

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-25°C

Published :

2011

Current Rating (Amps) :

3.5A

Body Color :

Black

Operating Temperature :

-25°C~85°C

Number of Conductors :

2

Mating Length/Depth :

0.339 8.60mm

Gender :

Male

Packaging :

Bulk

Lead Free :

Lead Free

Flammability Rating :

UL94 V-0

Insulation Resistance :

100MOhm

Actual Diameter :

0.051 (1.30mm ID), 0.150 (3.80mm OD)

Contact Material :

Brass, Copper Alloy

Housing Color :

Black

Mount :

Through Hole

Contact Material - Plating :

Silver

Industry Recognized Mating Diameter :

1.30mm ID (0.051), 3.50mm OD (0.138)

Color :

Black

Voltage - Rated :

24VDC

Feature :

Board Guide

Internal Switch(s) :

Single Switch, Normally Closed

Termination :

Solder

Current Rating :

3.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Plating :

Silver

Max Operating Temperature :

85°C

Material Flammability Rating :

UL94 V-0

Connector Type :

JACK

Mounting Type :

Through Hole, Right Angle

Shielding :

Unshielded

Factory Lead Time :

11 Weeks
