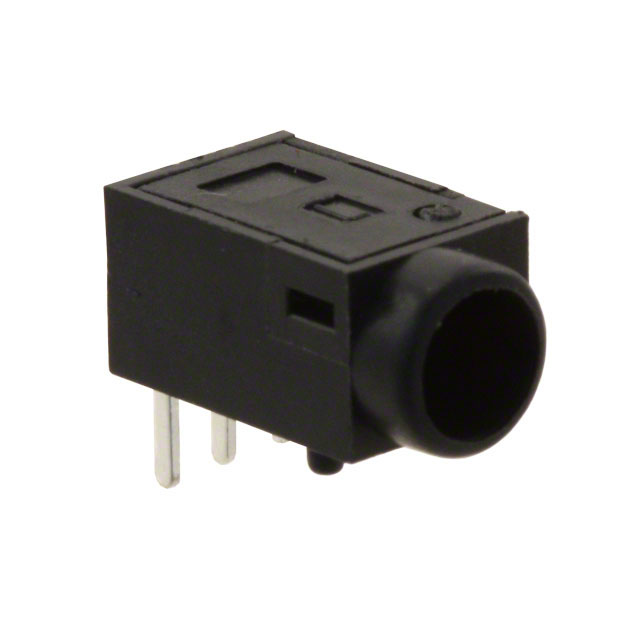

PJ-040CH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Industry Recognized Mating Diameter :

1.00mm ID (0.039), 3.40mm OD (0.134)

Packaging :

Bulk

Contact Plating :

Silver

Contact Gender :

Male

Max Operating Temperature :

85°C

Lead Free :

Lead Free

Connector Type :

JACK

Color :

Black

Internal Switch(s) :

Single Switch, Normally Closed

Mating Length/Depth :

0.339 8.60mm

Shielding :

Unshielded

Housing Material :

Polyamide (PA66), Nylon 6/6

Current Rating (Amps) :

3.5A

Flammability Rating :

UL94 V-0

Min Operating Temperature :

-25°C

Mounting Type :

Through Hole, Right Angle

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Operating Temperature :

-25°C~85°C

Factory Lead Time :

11 Weeks

Actual Diameter :

0.039 (1.00mm ID), 0.150 (3.80mm OD)

Insulation Resistance :

100MOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

2

Mount :

Through Hole

Gender :

Male

RoHS Status :

RoHS Compliant

Current Rating :

3.5A

Feature :

Board Guide

Housing Color :

Black

Termination :

Solder

Contact Material - Plating :

Silver

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass, Copper Alloy

Orientation :

Horizontal

Body Color :

Black

Voltage - Rated :

24VDC

Published :

2011
