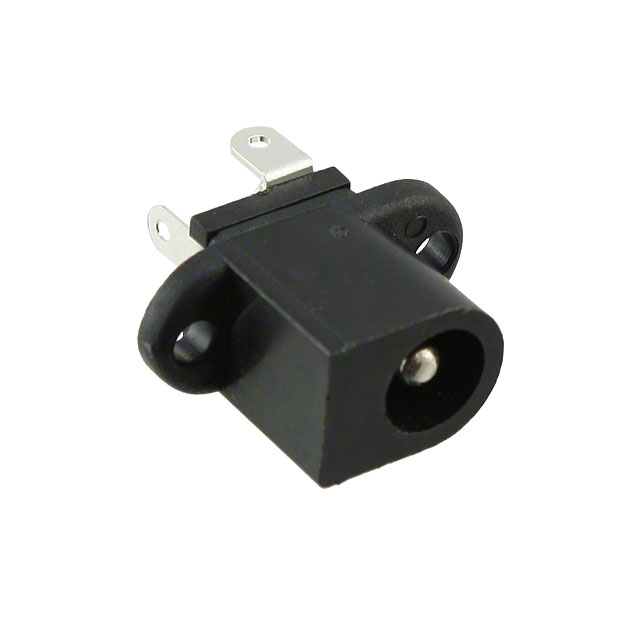

PJ-038BH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Mating Length/Depth :

0.354 9.00mm

Packaging :

Bulk

Operating Temperature :

-25°C~85°C

Termination :

Solder Eyelet(s)

Actual Diameter :

0.098 (2.50mm ID), 0.244 (6.20mm OD)

Published :

2011

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Factory Lead Time :

11 Weeks

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Material - Plating :

Silver

Gender :

Male

Flammability Rating :

UL94 V-0

Mount :

Flanges, Panel

Max Operating Temperature :

85°C

Contact Material :

Brass, Copper Alloy

Mounting Feature :

Flange

Mounting Type :

Panel Mount

Min Operating Temperature :

-25°C

Body Color :

Black

Contact Gender :

Male

Contact Plating :

Nickel

Current Rating :

5A

Shielding :

Unshielded

Housing Color :

Black

Voltage - Rated :

24VDC

Number of Conductors :

2

Lead Free :

Lead Free

Connector Type :

JACK

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Color :

Black

Internal Switch(s) :

Single Switch, Normally Closed

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

100MOhm

RoHS Status :

RoHS Compliant

Current Rating (Amps) :

5A

Material Flammability Rating :

UL94 V-0
