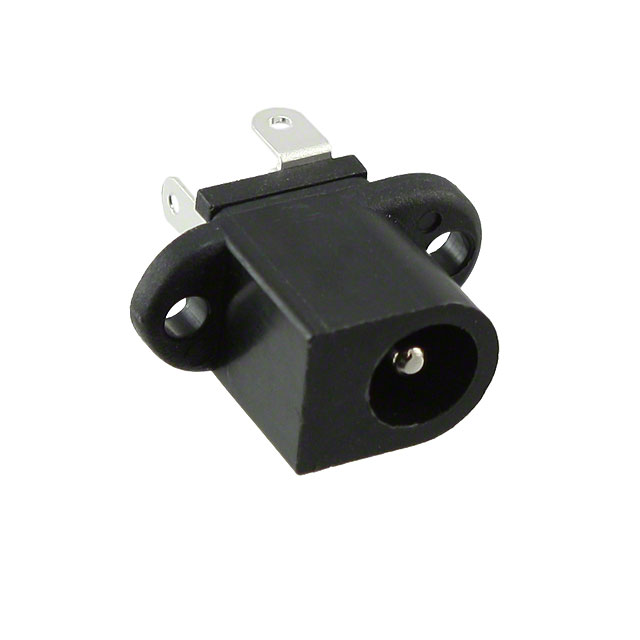

PJ-038AH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Connector Type :

JACK

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Mounting Type :

Panel Mount

Contact Material :

Brass, Copper Alloy

Operating Temperature :

-25°C~85°C

Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Mounting Feature :

Flange

Mount :

Flanges, Panel

Mating Length/Depth :

0.354 9.00mm

Packaging :

Bulk

Housing Material :

Polybutylene Terephthalate (PBT)

Voltage - Rated :

24VDC

Current Rating (Amps) :

5A

Published :

2011

Housing Color :

Black

Body Color :

Black

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

11 Weeks

Actual Diameter :

0.079 (2.00mm ID), 0.244 (6.20mm OD)

Internal Switch(s) :

Single Switch, Normally Closed

Max Operating Temperature :

85°C

Min Operating Temperature :

-25°C

Shielding :

Unshielded

Contact Material - Plating :

Silver

Color :

Black

Insulation Resistance :

100MOhm

Lead Free :

Lead Free

Termination :

Solder Eyelet(s)

Contact Gender :

Male

Current Rating :

5A

Number of Conductors :

2

Contact Plating :

Nickel
