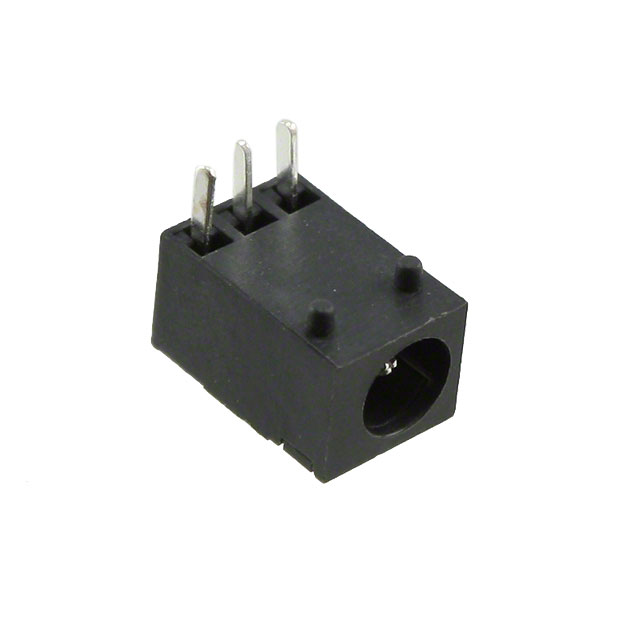

PJ-036CH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Housing Material :

Polyamide (PA66), Nylon 6/6

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

Current Rating (Amps) :

3.5A

Contact Gender :

Male

Operating Temperature :

-25°C~85°C

Feature :

Board Guide

Min Operating Temperature :

-25°C

Connector Type :

JACK

Mating Length/Depth :

0.260 6.60mm

Mounting Type :

Through Hole, Right Angle

Number of Conductors :

2

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Voltage - Rated :

24VDC

Contact Material - Plating :

Silver

Shielding :

Unshielded

Published :

2011

Actual Diameter :

0.039 (1.00mm ID), 0.150 (3.80mm OD)

Insulation Resistance :

100MOhm

Max Operating Temperature :

85°C

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass, Copper Alloy

Gender :

Male

Flammability Rating :

UL94 V-0

Housing Color :

Black

Factory Lead Time :

11 Weeks

Current Rating :

3.5A

Lead Free :

Lead Free

Mount :

Through Hole

Packaging :

Bulk

Internal Switch(s) :

Single Switch, Normally Closed

RoHS Status :

RoHS Compliant

Contact Plating :

Silver

Industry Recognized Mating Diameter :

1.00mm ID (0.039), 3.40mm OD (0.134)

Body Color :

Black

Orientation :

Horizontal
