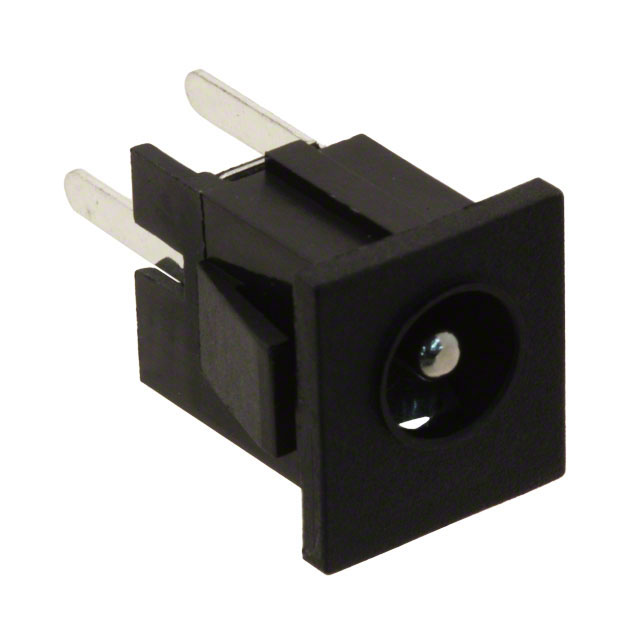

PJ-033B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Contact Material - Plating :

Tin

Contact Plating :

Nickel

Contact Material :

Brass, Copper Alloy

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Actual Diameter :

0.098 (2.50mm ID), 0.240 (6.10mm OD)

Current Rating :

2.5A

Mounting Type :

Panel Mount, Through Hole

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-25°C~85°C

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Gender :

Male

Lead Free :

Lead Free

Published :

2011

Mating Length/Depth :

0.323 8.20mm

Shielding :

Unshielded

RoHS Status :

RoHS Compliant

Termination :

Solder

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Min Operating Temperature :

-25°C

Packaging :

Bulk

Max Operating Temperature :

85°C

Insulation Resistance :

100MOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Color :

Black

Flammability Rating :

UL94 V-0

Number of Conductors :

2

Color :

Black

Voltage - Rated :

24VDC

Connector Type :

JACK

Gender :

Male

Current Rating (Amps) :

2.5A

Internal Switch(s) :

Single Switch, Normally Closed

Mount :

Panel, Through Hole

Factory Lead Time :

11 Weeks

Housing Color :

Black

Orientation :

Vertical

Feature :

Board Lock
