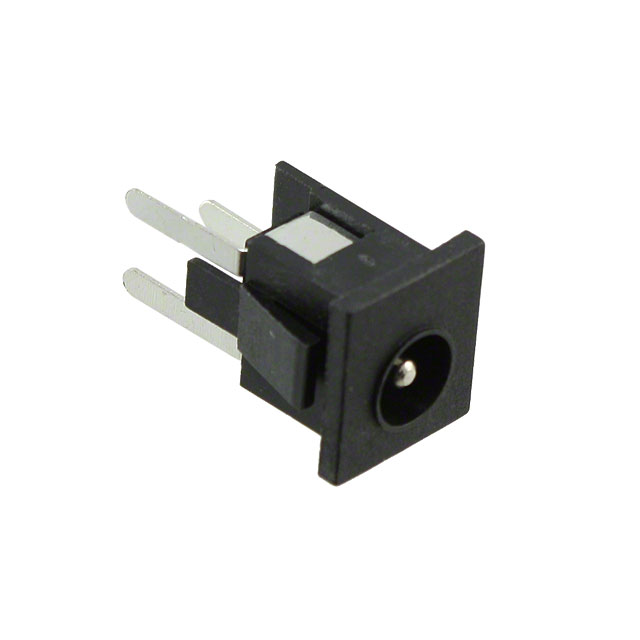

PJ-033A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Orientation :

Vertical

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Gender :

Male

Contact Plating :

Nickel

Shielding :

Unshielded

Termination :

Solder

Lead Free :

Lead Free

Factory Lead Time :

11 Weeks

Internal Switch(s) :

Single Switch, Normally Closed

Housing Material :

Polybutylene Terephthalate (PBT)

Current Rating (Amps) :

2.5A

Insulation Resistance :

100MOhm

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Contact Material - Plating :

Tin

Mount :

Panel, Through Hole

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

24VDC

Color :

Black

Published :

2011

Contact Gender :

Male

Feature :

Board Lock

Housing Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

85°C

Mounting Type :

Panel Mount, Through Hole

Contact Material :

Brass, Copper Alloy

Current Rating :

2.5A

Actual Diameter :

0.079 (2.00mm ID), 0.240 (6.10mm OD)

Number of Conductors :

2

Mating Length/Depth :

0.323 8.20mm

Min Operating Temperature :

-25°C

Operating Temperature :

-25°C~85°C

Connector Type :

JACK

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Body Color :

Black

RoHS Status :

RoHS Compliant
