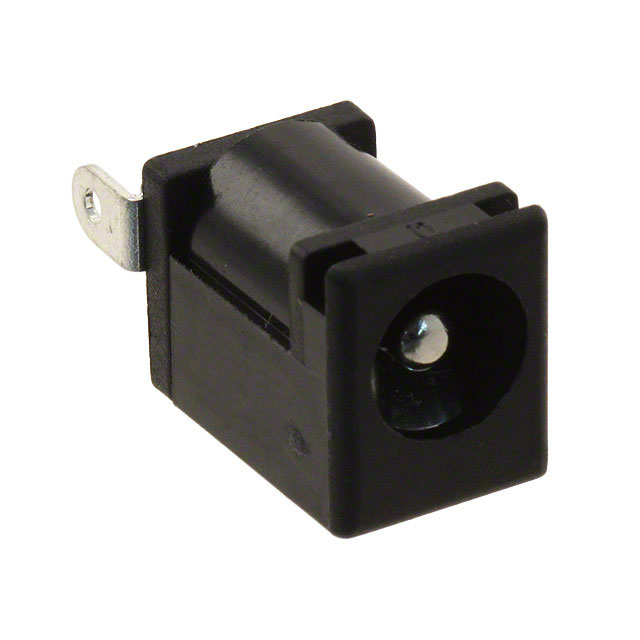

PJ-032B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Operating Temperature :

-25°C~85°C

Packaging :

Bulk

Current Rating (Amps) :

2.5A

RoHS Status :

RoHS Compliant

Max Operating Temperature :

85°C

Contact Plating :

Nickel

Contact Gender :

Male

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Current Rating :

2.5A

Housing Material :

Polybutylene Terephthalate (PBT)

Material Flammability Rating :

UL94 V-0

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Color :

Black

Flammability Rating :

UL94 V-0

Orientation :

Vertical

Factory Lead Time :

11 Weeks

Mount :

Through Hole

Number of Conductors :

2

Mating Length/Depth :

0.354 9.00mm

Mounting Type :

Through Hole

Actual Diameter :

0.098 (2.50mm ID), 0.256 (6.50mm OD)

Min Operating Temperature :

-25°C

Insulation Resistance :

100MOhm

Published :

2011

Internal Switch(s) :

Single Switch, Normally Closed

Lead Free :

Lead Free

Gender :

Male

Contact Material :

Brass, Copper Alloy

Body Color :

Black

Connector Type :

JACK

Shielding :

Unshielded

Termination :

Solder Eyelet(s)

Voltage - Rated :

24VDC

Contact Material - Plating :

Tin

Housing Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
