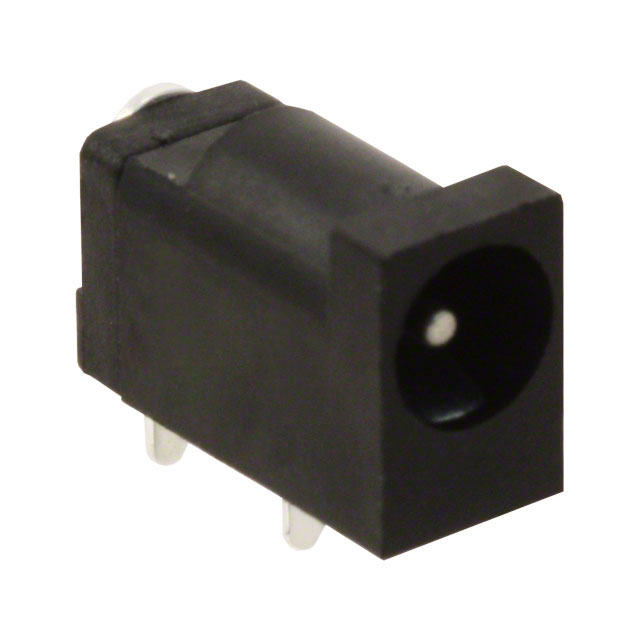

PJ-031CH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Contact Plating :

Nickel

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

11 Weeks

Housing Material :

Polybutylene Terephthalate (PBT)

Body Color :

Black

Mating Length/Depth :

0.260 6.60mm

Current Rating (Amps) :

3.5A

Gender :

Male

Industry Recognized Mating Diameter :

1.00mm ID (0.039), 3.40mm OD (0.134)

Termination :

Solder

Housing Color :

Black

Connector Type :

JACK

Contact Material :

Brass, Copper Alloy

Min Operating Temperature :

-25°C

Number of Conductors :

2

Operating Temperature :

-25°C~85°C

Internal Switch(s) :

Single Switch, Normally Closed

RoHS Status :

RoHS Compliant

Contact Gender :

Male

Shielding :

Unshielded

Flammability Rating :

UL94 V-0

Voltage - Rated :

24VDC

Packaging :

Bulk

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Mounting Type :

Through Hole, Right Angle

Contact Material - Plating :

Silver

Lead Free :

Lead Free

Current Rating :

3.5A

Published :

2011

Material Flammability Rating :

UL94 V-0

Actual Diameter :

0.039 (1.00mm ID), 0.165 (4.20mm OD)

Orientation :

Horizontal

Max Operating Temperature :

85°C

Insulation Resistance :

100MOhm

Color :

Black

Mount :

Through Hole
