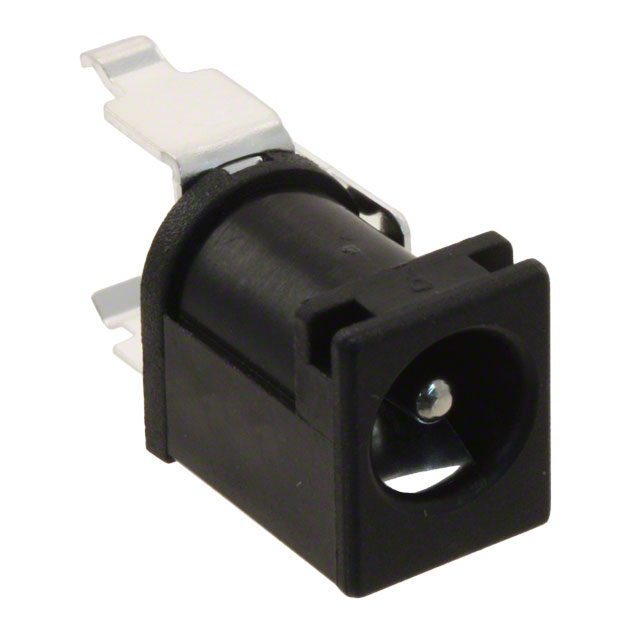

PJ-028AH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Mating Length/Depth :

0.354 9.00mm

Internal Switch(s) :

Single Switch, Normally Closed

Body Color :

Black

Insulation Resistance :

100MOhm

Connector Type :

JACK

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Published :

2011

Gender :

Male

Contact Material :

Brass, Copper Alloy

Housing Color :

Black

Operating Temperature :

-25°C~85°C

Contact Plating :

Nickel

Packaging :

Bulk

Voltage - Rated :

24VDC

Factory Lead Time :

11 Weeks

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole

Actual Diameter :

0.079 (2.00mm ID), 0.256 (6.50mm OD)

Color :

Black

Contact Material - Plating :

Silver

Mount :

Through Hole

Termination :

Kinked Pin

Lead Free :

Lead Free

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Current Rating :

5A

Min Operating Temperature :

-25°C

Current Rating (Amps) :

5A

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Max Operating Temperature :

85°C

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Gender :

Male

Shielding :

Unshielded

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Vertical

Number of Conductors :

2
