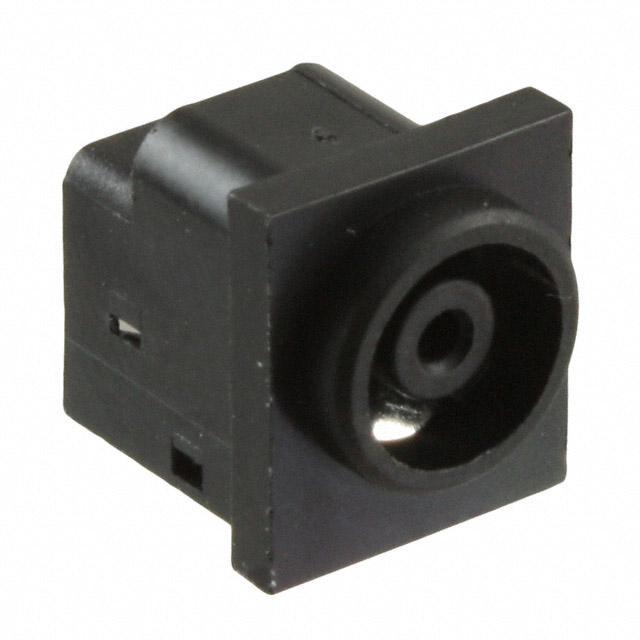

PJ-025

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Gender :

FEMALE

Voltage - Rated :

24VDC

Diameter :

1.4mm

Orientation :

Horizontal

Contact Plating :

Tin

Body Color :

Black

Contact Material - Plating :

Tin

Mating Length/Depth :

0.354 9.00mm

Min Operating Temperature :

-25°C

Number of Contacts :

3

Flammability Rating :

UL94 V-0

Feature :

Board Guide

Termination :

Solder

Mounting Type :

Through Hole, Right Angle

Actual Diameter :

0.057 (1.45mm ID), 0.157 (4.00mm OD)

Lead Free :

Lead Free

Internal Switch(s) :

Single Switch, Normally Closed

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

12.7mm

Current Rating (Amps) :

3A

Contact Material :

Brass, Copper Alloy

Number of Conductors :

2

Insulation Resistance :

50mOhm

Current Rating :

3A

RoHS Status :

RoHS Compliant

Packaging :

Bulk

Industry Recognized Mating Diameter :

1.40mm ID (0.055), 4.30mm ID (0.169), 6.50mm OD (0.256) EIAJ-5

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-25°C~85°C

Shielding :

Unshielded

Max Operating Temperature :

85°C

Mount :

Through Hole

Housing Material :

Polybutylene Terephthalate (PBT)

Housing Color :

Black

Factory Lead Time :

11 Weeks

Connector Type :

JACK

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Published :

2011

Color :

Black

Contact Gender :

FEMALE
