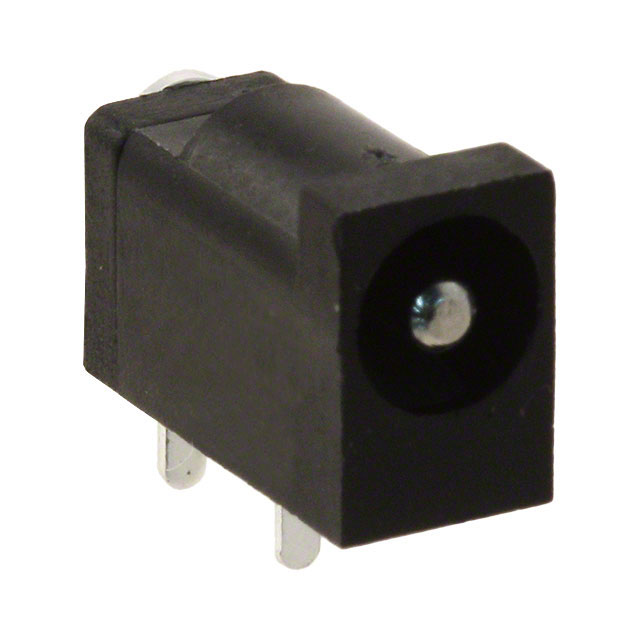

PJ-018H

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Connector Type :

JACK

Voltage - Rated :

16VDC

Termination :

Solder

Max Operating Temperature :

85°C

Housing Material :

Polybutylene Terephthalate (PBT)

Current Rating :

3.5A

Factory Lead Time :

11 Weeks

Contact Plating :

Nickel

Industry Recognized Mating Diameter :

1.70mm ID (0.067), 4.00mm OD (0.157) EIAJ-2

Flammability Rating :

UL94 V-0

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Current Rating (Amps) :

3.5A

Body Color :

Black

Shielding :

Unshielded

Material Flammability Rating :

UL94 V-0

Contact Material - Plating :

Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Packaging :

Bulk

Housing Color :

Black

Color :

Black

Mount :

Through Hole

Lead Free :

Lead Free

Actual Diameter :

0.065 (1.65mm ID), 0.165 (4.20mm OD)

Contact Material :

Brass, Copper Alloy

Internal Switch(s) :

Single Switch, Normally Closed

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole, Right Angle

Gender :

Male

Published :

2011

Number of Conductors :

2

Orientation :

Horizontal

Min Operating Temperature :

-25°C

Mating Length/Depth :

0.260 6.60mm

Operating Temperature :

-25°C~85°C

Insulation Resistance :

100MOhm
