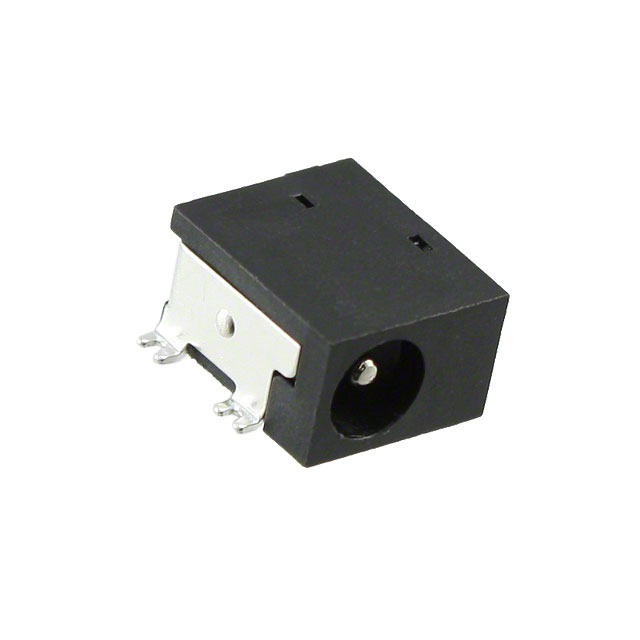

PJ-014D-SMT-TR
Or copy the link below:
- Mfr.Part #
- PJ-014D-SMT-TR
- Manufacturer
- CUI Devices
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- CONN PWR JACK 1.35X3.5MM SOLDER
- Stock
- 12,035
- In Stock ：
- 12,035
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Contact Material - Plating :
- Silver
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Feature :
- Board Guide
- Gender :
- Male
- Shielding :
- Unshielded
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 85°C
- Body Color :
- Black
- Current Rating (Amps) :
- 2A
- Packaging :
- Tape and Reel (TR)
- Package / Case :
- SMD/SMT
- Published :
- 2009
- Current Rating :
- 2A
- Color :
- Black
- Mounting Type :
- Surface Mount, Right Angle
- Internal Switch(s) :
- Single Switch, Normally Closed
- Housing Material :
- Polyamide (PA6T), Nylon 6T
- Contact Plating :
- Nickel
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 16VDC
- Contact Material :
- Brass, Copper Alloy
- Operating Temperature :
- -25°C~85°C
- Industry Recognized Mating Diameter :
- 1.35mm ID (0.053), 3.50mm OD (0.138)
- Housing Color :
- Black
- Actual Diameter :
- 0.051 (1.30mm ID), 0.154 (3.90mm OD)
- Min Operating Temperature :
- -25°C
- Connector Type :
- JACK
- Mount :
- Surface Mount
- Datasheets
- PJ-014D-SMT-TR
