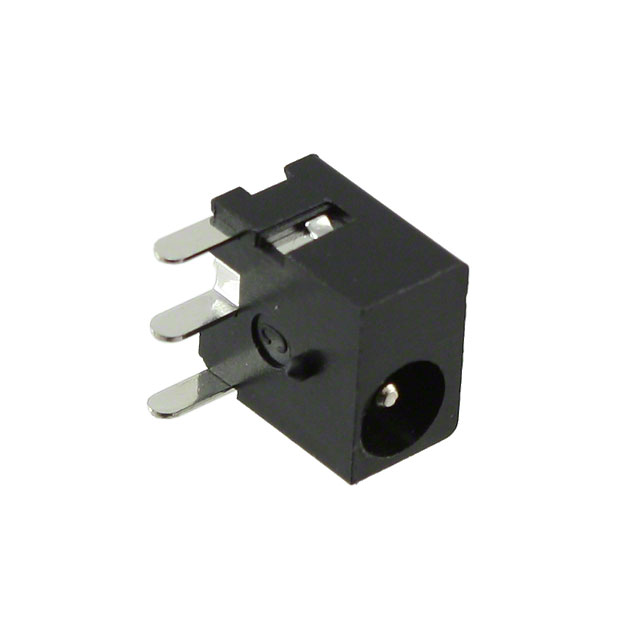

PJ-014D

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Min Operating Temperature :

-25°C

Current Rating :

2.5A

Published :

2011

Insulation Resistance :

100MOhm

Shielding :

Unshielded

Contact Material :

Brass, Copper Alloy

Packaging :

Bulk

Operating Temperature :

-25°C~85°C

Industry Recognized Mating Diameter :

1.30mm ID (0.051), 3.40mm OD (0.134)

Feature :

Board Guide

Orientation :

Horizontal

Moisture Sensitivity Level (MSL) :

Not Applicable

Contact Gender :

Male

Voltage - Rated :

24VDC

Color :

Black

Body Color :

Black

Factory Lead Time :

11 Weeks

Mounting Type :

Through Hole, Right Angle

Connector Type :

JACK

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Actual Diameter :

0.051 (1.30mm ID), 0.165 (4.20mm OD)

Max Operating Temperature :

85°C

Diameter :

1.3mm

Internal Switch(s) :

Single Switch, Normally Closed

Mount :

Through Hole

Gender :

Male

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Flammability Rating :

UL94 V-0

Housing Material :

Thermoplastic

Housing Color :

Black

RoHS Status :

RoHS Compliant

Contact Plating :

Nickel

Current Rating (Amps) :

2.5A

Number of Conductors :

2

Mating Length/Depth :

0.283 7.20mm

Contact Material - Plating :

Tin
