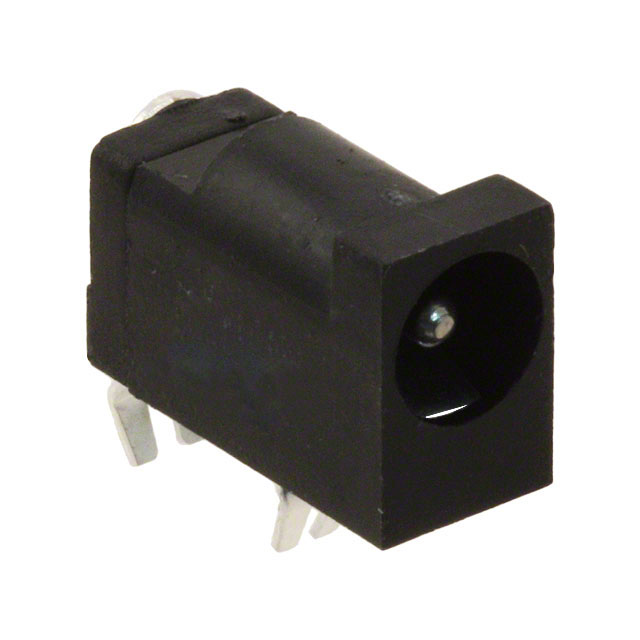

PJ-013D
Or copy the link below:
- Mfr.Part #
- PJ-013D
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN POWER JACK 1.3X3.4MM
- Stock
- 14,551
- In Stock ：
- 14,551
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Connector Type :
- JACK
- Factory Lead Time :
- 11 Weeks
- Termination :
- Kinked Pin
- Body Color :
- Black
- Contact Material - Plating :
- Silver
- Voltage - Rated :
- 24VDC
- Housing Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Insulation Resistance :
- 100MOhm
- Number of Conductors :
- 2
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Shielding :
- Unshielded
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Nickel
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Current Rating :
- 3.5A
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Internal Switch(s) :
- Single Switch, Normally Closed
- Published :
- 2011
- Current Rating (Amps) :
- 3.5A
- Actual Diameter :
- 0.051 (1.30mm ID), 0.165 (4.20mm OD)
- Diameter :
- 1.3mm
- Mating Length/Depth :
- 0.260 6.60mm
- Contact Material :
- Brass, Copper Alloy
- Max Operating Temperature :
- 85°C
- Operating Temperature :
- -25°C~85°C
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Color :
- Black
- Orientation :
- Horizontal
- Industry Recognized Mating Diameter :
- 1.30mm ID (0.051), 3.40mm OD (0.134)
- Gender :
- Male
- Lead Free :
- Lead Free
- Min Operating Temperature :
- -25°C
- Mount :
- Through Hole
- Packaging :
- Tray
- Datasheets
- PJ-013D
