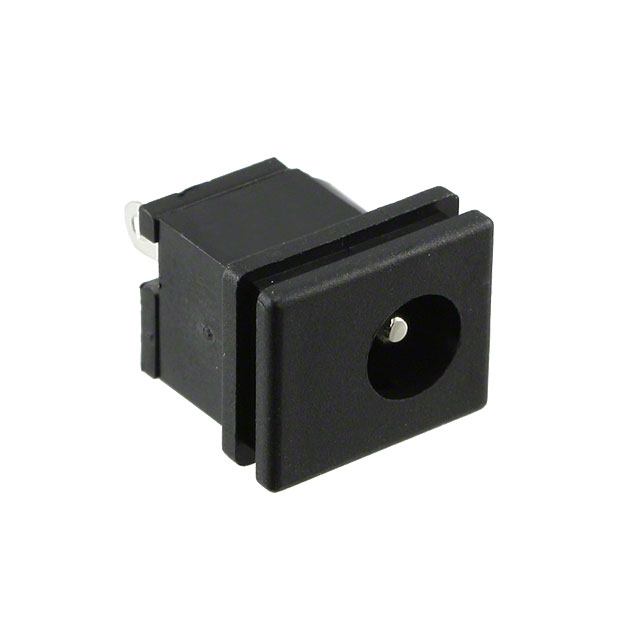

PJ-009BH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Mount :

Panel

Internal Switch(s) :

Single Switch, Normally Closed

Termination :

Solder Eyelet(s)

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Body Color :

Black

Shielding :

Unshielded

Gender :

Male

Contact Material - Plating :

Silver

Published :

2011

Max Operating Temperature :

85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Packaging :

Bulk

Mounting Type :

Panel Mount

Current Rating :

5A

Flammability Rating :

UL94 V-0

Connector Type :

JACK

Actual Diameter :

0.098 (2.50mm ID), 0.260 (6.60mm OD)

Min Operating Temperature :

-25°C

Contact Material :

Brass, Copper Alloy

Lead Free :

Lead Free

Housing Color :

Black

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Voltage - Rated :

24VDC

Color :

Black

Material Flammability Rating :

UL94 V-0

Number of Conductors :

2

Insulation Resistance :

100MOhm

RoHS Status :

RoHS Compliant

Contact Plating :

Nickel

Factory Lead Time :

11 Weeks

Current Rating (Amps) :

5A

Operating Temperature :

-25°C~85°C

Mating Length/Depth :

0.374 9.50mm

Housing Material :

Polybutylene Terephthalate (PBT)
