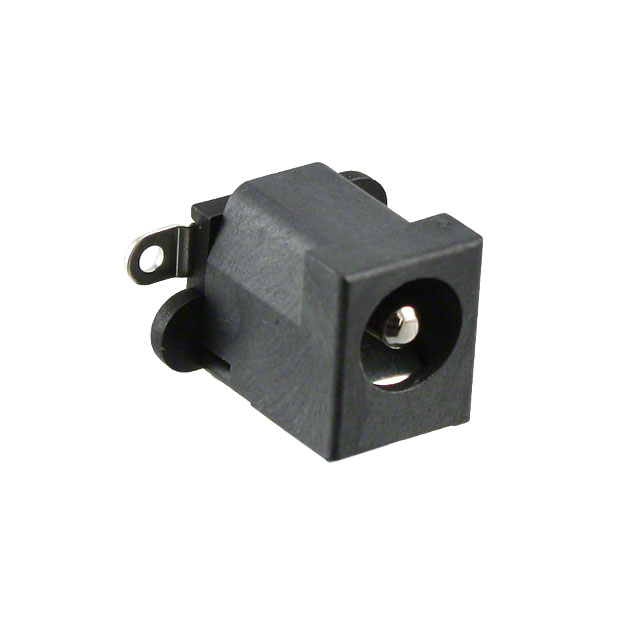

PJ-006B-SMT-TR

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Package / Case :

SMD/SMT

Color :

Black

Body Color :

Black

Published :

2011

Contact Gender :

Male

Operating Temperature :

-20°C~85°C

Shielding :

Unshielded

Gender :

Male

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Housing Material :

Liquid Crystal Polymer (LCP)

RoHS Status :

RoHS Compliant

Insulation Resistance :

100MOhm

Packaging :

Tape and Reel (TR)

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Contact Plating :

Nickel

Contact Material - Plating :

Silver

Mating Length/Depth :

0.352 8.95mm

Min Operating Temperature :

-20°C

Connector Type :

JACK

Mounting Type :

Surface Mount

Housing Color :

Black

Internal Switch(s) :

Single Switch, Normally Closed

Mount :

Surface Mount

Actual Diameter :

0.098 (2.50mm ID), 0.248 (6.30mm OD)

Voltage - Rated :

16VDC

Current Rating (Amps) :

2A

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Current Rating :

2A

Contact Material :

COPPER ALLOY

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

85°C

Termination :

Solder

Factory Lead Time :

13 Weeks
