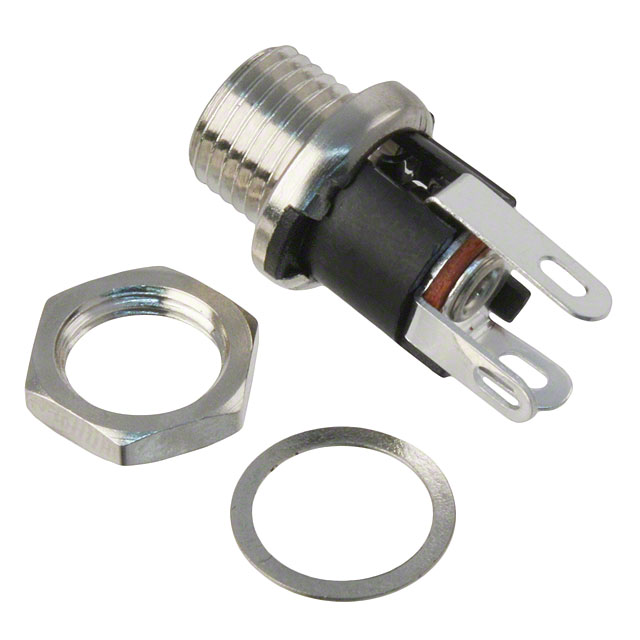

PJ-005A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Flammability Rating :

UL94 V-0

Shielding :

Unshielded

Mounting Type :

Panel Mount, Through Hole

Number of Conductors :

2

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Actual Diameter :

0.079 (2.00mm ID), 0.224 (5.70mm OD)

Material Flammability Rating :

UL94 V-0

Housing Material :

Polybutylene Terephthalate (PBT)

Connector Type :

JACK

Published :

2011

Max Operating Temperature :

70°C

Lead Free :

Lead Free

Mating Length/Depth :

0.354 9.00mm

Mounting Feature :

Bulkhead - Front Side Nut

Voltage - Rated :

24VDC

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Feature :

Mounting Hardware, Thread Lock

Internal Switch(s) :

Single Switch, Normally Closed

Contact Plating :

Nickel

Diameter :

2.1mm

Contact Material :

Brass, Phosphor Bronze

Insulation Resistance :

100MOhm

Mount :

Bulkhead, Front Side Nut, Panel

Termination :

Solder Eyelet(s)

Body Material :

Brass

Current Rating :

5A

Body Color :

Silver, Black

Color :

Black

Current Rating (Amps) :

5A

Factory Lead Time :

12 Weeks

Contact Gender :

Male

Orientation :

Vertical

Operating Temperature :

-40°C~70°C

Contact Material - Plating :

Silver

Packaging :

Bulk

Housing Color :

Black

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Gender :

Male

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-40°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
