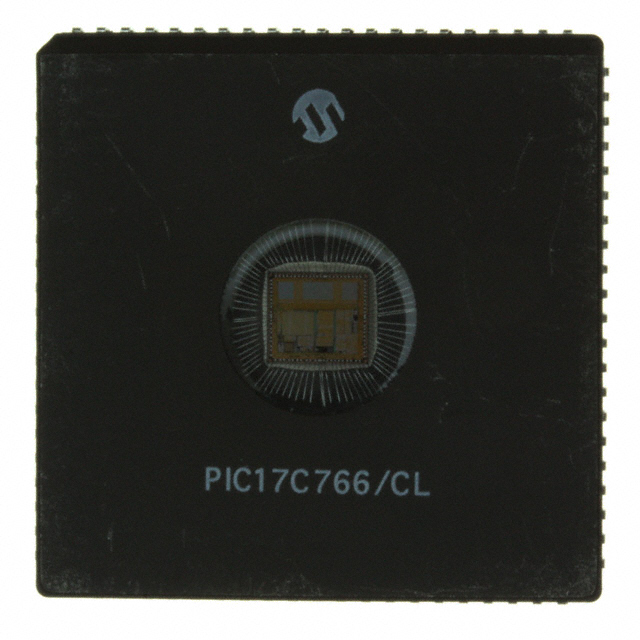

PIC17C766/CL
Or copy the link below:
- Mfr.Part #
- PIC17C766/CL
- Manufacturer
- Microchip Technology
- Package / Case
- 84-CLCC Window (J-Lead)
- Datasheet
- Download
- Description
- IC MCU 8B 32KB EPROM 84CERQUAD
- Stock
- 10,220
- In Stock ：
- 10,220
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- Microcontrollers
- Data Converter :
- A/D 16x10b
- Product Status :
- Obsolete
- Number of Timers/Counters :
- 4
- Speed :
- 33MHz
- Program Memory Size :
- 32KB 16K x 16
- Supply Current-Max :
- 50mA
- Terminal Form :
- J BEND
- RAM Size :
- 902 x 8
- Power Supplies :
- 5V
- Published :
- 2009
- Mount :
- Surface Mount
- Watchdog Timer :
- yes
- Terminal Position :
- QUAD
- Data Bus Width :
- 8B
- Interface :
- I2C, RS-232, SCI, SPI, SSP, UART, USART
- Package / Case :
- 84-CLCC Window (J-Lead)
- Bit Size :
- 8
- Number of Pins :
- 84
- Core Size :
- 8-Bit
- Supplier Device Package :
- 84-CERQUAD (29.21x29.21)
- Connectivity :
- I2C, SPI, UART/USART
- Memory Size :
- 32kB
- Program Memory Type :
- EPROM, UV
- Terminal Finish :
- Matte Tin (Sn)
- Package :
- Tube
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e3
- Core Processor :
- PIC
- Series :
- PIC® 17C
- Radiation Hardening :
- No
- Supply Voltage :
- 5V
- Max Power Dissipation :
- 1W
- Base Part Number :
- PIC17C766
- CPU Family :
- PIC
- Pin Count :
- 84
- Access Time :
- 33 μs
- Terminal Pitch :
- 1.27mm
- Frequency :
- 33MHz
- Number of I/O :
- 66
- Number of Terminations :
- 84
- Base Product Number :
- PIC17C766
- EEPROM Size :
- --
- Voltage - Supply (Vcc/Vdd) :
- 4.5V~5.5V
- Data Converters :
- A/D 16x10b
- Mounting Type :
- Surface Mount
- ROM Programmability :
- UVPROM
- Memory Type :
- EPROM
- Peripherals :
- Brown-out Detect/Reset, POR, PWM, WDT
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tube
- Oscillator Type :
- External
- Operating Temperature :
- 0°C~70°C TA
- Datasheets
- PIC17C766/CL
PIC17C766/CL Documents
Microcontrollers Microchip Technology PIC17C766/CL Overview
Introducing the Microcontrollers Microchip Technology PIC17C766/CL, a high-performance microcontroller unit (MCU) from the renowned Microchip Technology. This robust IC is equipped with 32KB of EPROM, making it a perfect fit for applications requiring a combination of reliability, programmability, and longevity. Housed in an 84-pin CERQUAD package, it provides a compact solution for sophisticated embedded systems. The PIC17C766/CL is specifically designed to meet the demands of advanced control systems and is ideal for developers looking for scalable performance in industrial and commercial applications.
PIC17C766/CL Features
This MCU boasts an 8-bit architecture that offers a balance between performance and power consumption. Its 32KB EPROM provides ample space for complex program code and data storage, essential for real-time processing and control tasks. The device's robust package and enhanced input/output connectivity options make it highly adaptable for various challenging environments.
PIC17C766/CL Applications
- Automotive Systems: The PIC17C766/CL can be integrated into automotive control systems for engine management and in-car entertainment system controls, ensuring reliable operation in dynamic automotive environments.
- Industrial Automation: Employed in industrial automation systems, this MCU handles complex sequences for machinery control and sensor data integration, enhancing process efficiency and safety.
- Consumer Electronics: Ideal for smart home devices and personal electronics, the PIC17C766/CL facilitates sophisticated user interfaces and connectivity solutions, improving user experience and device functionality.
- Telecommunications: Used in telecommunication infrastructure, the MCU manages signal processing tasks and network communications, supporting the high reliability and uptime required in this sector.
