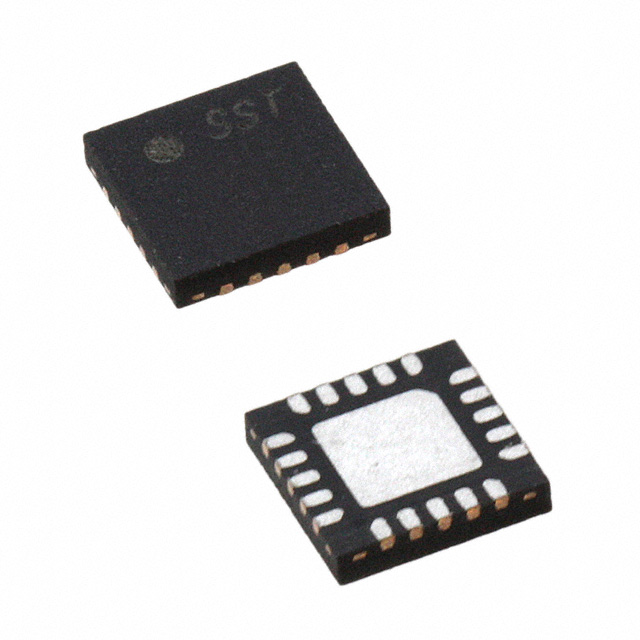

PIC16F527-E/JP

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

Manufacturer :

Microchip

JESD-609 Code :

e3

Base Product Number :

PIC16F527

Speed :

20MHz

Width :

3mm

JESD-30 Code :

S-PQCC-N20

Program Memory Type :

Flash

Package / Case :

20-UFQFN Exposed Pad

DAC Resolution :

5 bit

Product :

MCU

Brand :

Microchip Technology

PWM Channels :

No

Terminal Position :

QUAD

Min Operating Temperature :

-40 °C

Height Seated (Max) :

0.55mm

Low Power Mode :

yes

Product Status :

Active

Mounting Type :

Surface Mount

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Product Type :

8-bit Microcontrollers - MCU

RAM (words) :

68

DMA Channels :

No

Program Memory Size :

1.5KB 1K x 12

On Chip Data RAM Width :

8

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Supply Voltage-Max (Vsup) :

5.5V

Core Processor :

PIC

Terminal Form :

NO LEAD

Maximum Operating Temperature :

+ 125 C

Voltage - Supply (Vcc/Vdd) :

2V~5.5V

Number of I/Os :

17

Oscillator Type :

Internal

Data Converter :

A/D 8x8b

Interface Type :

I2C, LIN, SPI, UART, USART

Data Bus Width :

8 bit

On Chip Program ROM Width :

12

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Max Operating Temperature :

125 °C

Tradename :

PIC

Connectivity :

-

DAC Channels :

No

Number of Timers :

1

Number of ADC Channels :

8 Channel

HTS Code :

8542.31.00.01

Bit Size :

8

Surface Mount :

yes

Supplier Device Package :

20-UQFN (3x3)

Lifecycle Status :

Production (Last Updated: 2 years ago)

Subcategory :

Microcontrollers - MCU

Integrated Cache :

No

Product Category :

8-bit Microcontrollers - MCU

Series :

PIC® 16F

Length :

3mm

Mounting Style :

SMD/SMT

Operating Temperature :

-40°C~125°C TA

Data Converters :

A/D 8x8b

RoHS Status :

ROHS3 Compliant

Minimum Operating Temperature :

- 40 C

ECCN Code :

EAR99

Core Architecture :

PIC

Factory Lead Time :

9 Weeks

Base Part Number :

PIC16F527

Memory Type :

Flash

Supply Voltage :

5V

RAM Size :

68 x 8

Supply Voltage-Min (Vsup) :

4.5V

Package :

Tube

Number of I/O :

17

Number of Terminations :

20

RoHS :

Compliant

Device Core :

PIC

Packaging :

Tube

Memory Size :

1.5kB

Published :

2012

EEPROM Size :

64 x 8

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Has ADC :

yes

ROM (words) :

1024

Peripherals :

Brown-out Detect/Reset, POR, WDT

Terminal Finish :

Matte Tin (Sn)

Terminal Pitch :

0.4mm

Frequency :

20MHz

Core Size :

8-Bit
