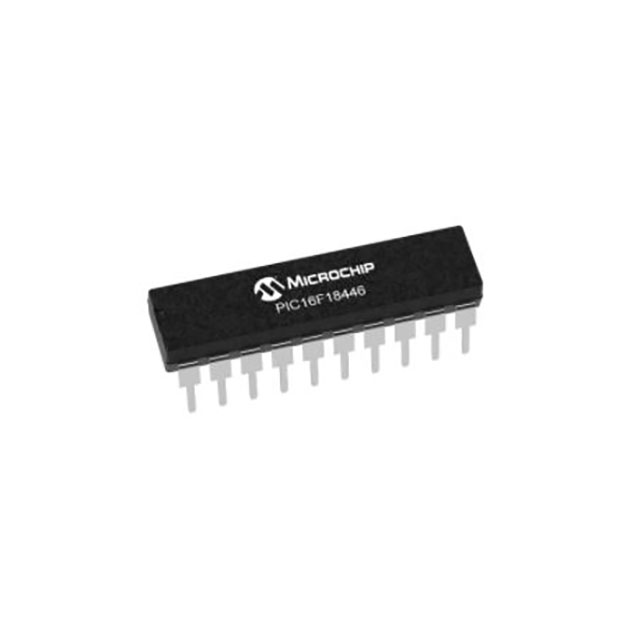

PIC16F18446-E/P

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

Speed :

32MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Data Converters :

A/D 17x12b; D/A 1x5b

Terminal Position :

Dual

Additional Feature :

IT ALSO OPERATES AT 16MHZ AT 2.3V MIN SUPPLY

Data Bus Width :

8 bit

DAC Resolution :

5

Width :

7.62mm

Operating Temp Range :

-40C to 125C

Interface Type :

I2C/SPI/USART

Connectivity :

I2C, LINbus, SPI, UART/USART

Program Memory Type :

Flash

Product :

MCU

Device Core Size :

8(b)

Programmable :

yes

Device Core :

PIC

Product Category :

8-bit Microcontrollers - MCU

Package :

Tube

Supply Voltage-Max (Vsup) :

5.5V

Operating Temperature (Min) :

-40C

Product Status :

Active

Screening Level :

TS 16949

Minimum Operating Temperature :

- 40 C

Voltage - Supply (Vcc/Vdd) :

2.3V~5.5V

RoHS Status :

ROHS3 Compliant

Data Converter :

A/D 17x12b; D/A 1x5b

Number of Timers - General Purpose :

8

RAM Size :

2K x 8

Rad Hardened :

No

RoHS :

Non-Compliant

Package Type :

PDIP

Supply Voltage :

3V

Lifecycle Status :

Production (Last Updated: 2 years ago)

Core Processor :

PIC

Supply Voltage-Min (Vsup) :

2.5V

Total Internal Ram Size :

2KB(kB)

Clock Frequency :

32MHz

Terminal Finish :

Matte Tin (Sn)

PWM Channels :

yes

Supplier Device Package :

20-PDIP

On Chip Program ROM Width :

14

Operating Temperature Classification :

Automotive

Maximum Operating Temperature :

+ 125 C

Mounting Type :

Through Hole

Brand :

Microchip Technology / Atmel

Number of Terminations :

20

JESD-609 Code :

e3

Has ADC :

yes

Terminal Pitch :

2.54mm

Height Seated (Max) :

5.334mm

Peak Reflow Temperature (Cel) :

260

Operating Supply Voltage (Min) :

2.3(V)

HTS Code :

8542.31.00.01

Operating Supply Voltage (Typ) :

2.5/3.3/5(V)

Operating Temperature (Max) :

125C

Oscillator Type :

Internal

DAC Channels :

yes

Number of ADC Channels :

17 Channel

JESD-30 Code :

R-PDIP-T20

Pin Count :

20

Factory Lead Time :

11 Weeks

Manufacturer :

Microchip

Frequency :

32(MHz)

Instruction Set Architecture :

RISC

Base Product Number :

PIC16F18446

Mounting :

Through Hole

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Schedule B :

8542310000, 8542310000/8542310000, 8542310000/8542310000/8542310000, 8542310000/8542310000/8542310000/8542310000

Number of I/O :

18

Clock Freq :

32(MHz)

Mounting Style :

Through Hole

Bit Size :

8

Program Memory Size :

28KB 16K x 14

Product Type :

8-bit Microcontrollers - MCU

DMA Channels :

No

Operating Temperature :

-40°C~125°C TA

Subcategory :

Microcontrollers - MCU

Core Size :

8-Bit

Packaging :

Tube

Base Part Number :

PIC16F18446

# I/Os (Max) :

18

Series :

PIC® XLP™ 16F

Surface Mount :

No

Operating Supply Voltage (Max) :

5.5(V)

Package / Case :

20-DIP (0.300, 7.62mm)

Tradename :

PIC

Number of I/Os :

18 I/O

EEPROM Size :

256 x 8

Length :

26.162mm

Time@Peak Reflow Temperature-Max (s) :

30

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT
