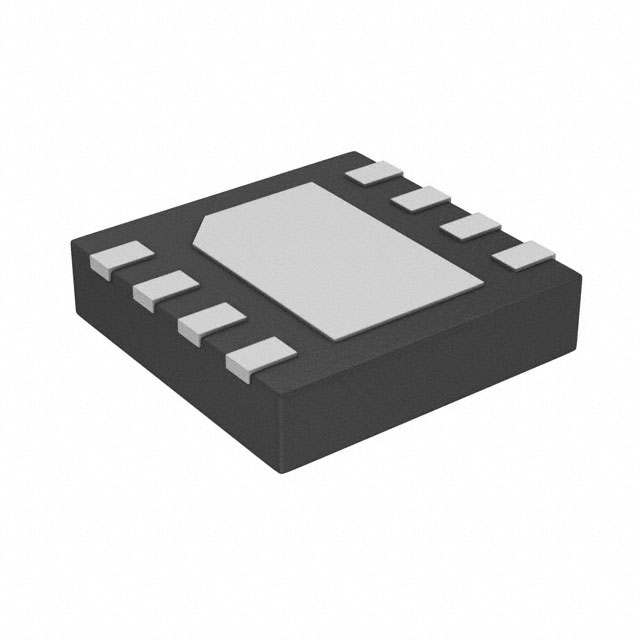

PIC12LF1571-E/RF

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

Product Category :

8-bit Microcontrollers - MCU

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Type :

Flash

Frequency :

32MHz

Mounting Style :

SMD/SMT

Brand :

Microchip Technology / Atmel

Data Converters :

A/D 4x10b; D/A 1x5b

Operating Temperature :

-40°C~125°C TA

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Minimum Operating Temperature :

- 40 C

Tradename :

PIC

Speed :

32MHz

Product Status :

Active

Series :

PIC® 12F

Length :

3mm

EEPROM Size :

-

Product Type :

8-bit Microcontrollers - MCU

Supply Voltage :

3V

Packaging :

Tube

Supply Voltage-Min (Vsup) :

2.5V

DAC Channels :

yes

Published :

2016

Has ADC :

yes

Height Seated (Max) :

0.55mm

Core Size :

8-Bit

Number of I/O :

6

Width :

3mm

Terminal Position :

Dual

DMA Channels :

No

Voltage - Supply (Vcc/Vdd) :

1.8V~3.6V

Number of I/Os :

6 I/O

Oscillator Type :

Internal

Base Part Number :

PIC12LF1571

Program Memory Size :

1.75KB 1K x 14

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Subcategory :

Microcontrollers - MCU

Terminal Form :

NO LEAD

Package / Case :

8-UDFN Exposed Pad

Maximum Operating Temperature :

+ 125 C

Data Converter :

A/D 4x10b; D/A 1x5b

Surface Mount :

yes

Data Bus Width :

8 bit

RoHS Status :

ROHS3 Compliant

JESD-30 Code :

S-PDSO-N8

Supplier Device Package :

8-UDFN (3x3)

Manufacturer :

Microchip

Bit Size :

8

Number of Terminations :

8

Connectivity :

-

On Chip Program ROM Width :

14

Factory Lead Time :

6 Weeks

Package :

Tube

RoHS :

Details

PWM Channels :

yes

ROM (words) :

1024

HTS Code :

8542.31.00.01

Mounting Type :

Surface Mount

Core Processor :

PIC

Base Product Number :

PIC12LF1571

Memory Size :

1.8kB

RAM Size :

128 x 8
