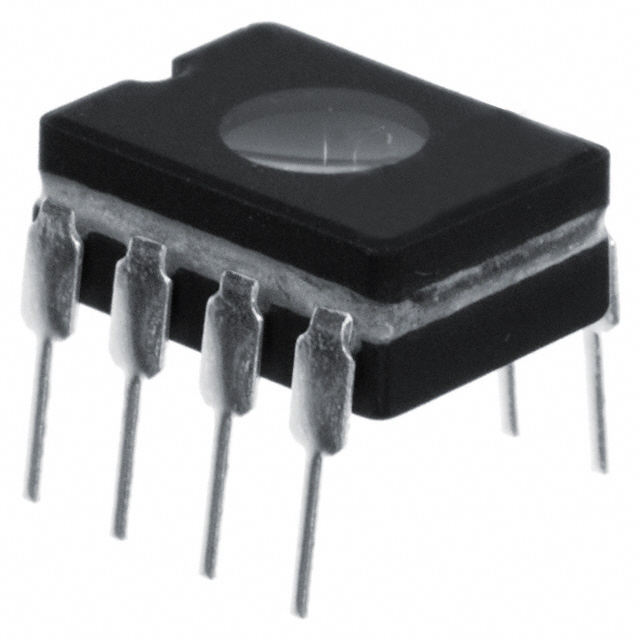

PIC12CE674/JW
Or copy the link below:
- Mfr.Part #
- PIC12CE674/JW
- Manufacturer
- Microchip Technology
- Package / Case
- 8-CDIP (0.300, 7.62mm) Window
- Datasheet
- Download
- Description
- IC MCU 8BIT 3.5KB EPROM/UV 8CDIP
- Stock
- 64
- In Stock ：
- 64
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Microchip Technology
- Product Category :
- Microcontrollers
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- Through Hole
- On Chip Program ROM Width :
- 14
- Max Power Dissipation :
- 700mW
- DAC Channels :
- No
- RAM Size :
- 128 x 8
- Has ADC :
- yes
- Product Status :
- Obsolete
- Supply Voltage-Min (Vsup) :
- 3V
- Data Converter :
- A/D 4x8b
- Connectivity :
- -
- Oscillator Type :
- Internal
- Package :
- Tube
- Program Memory Type :
- EPROM, UV
- Peripherals :
- POR, WDT
- Lead Free :
- Contains Lead
- Memory Size :
- 8kB
- Frequency :
- 10MHz
- ROM Programmability :
- UVPROM
- Data Bus Width :
- 8B
- Core Processor :
- PIC
- Data Converters :
- A/D 4x8b
- Number of Terminations :
- 8
- Series :
- PIC® 12C
- Speed :
- 10MHz
- Number of I/O :
- 5
- Pin Count :
- 8
- EEPROM Size :
- 16 x 8
- Voltage - Supply (Vcc/Vdd) :
- 3V~5.5V
- Base Part Number :
- PIC12CE674
- DMA Channels :
- No
- Supplier Device Package :
- 8-CDIP
- Radiation Hardening :
- No
- Terminal Position :
- Dual
- JESD-609 Code :
- e3
- Base Product Number :
- PIC12CE674
- Published :
- 1997
- Surface Mount :
- No
- Terminal Finish :
- MATTE TIN
- Bit Size :
- 8
- Pbfree Code :
- yes
- PWM Channels :
- No
- Supply Voltage :
- 5V
- Core Size :
- 8-Bit
- Memory Type :
- EPROM
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Access Time :
- 10 μs
- Packaging :
- Tube
- Number of Pins :
- 8
- Operating Temperature :
- 0°C~70°C TA
- Package / Case :
- 8-CDIP (0.300, 7.62mm) Window
- Watchdog Timer :
- yes
- Program Memory Size :
- 3.5KB 2K x 14
- uPs/uCs/Peripheral ICs Type :
- MICROCONTROLLER, RISC
- Datasheets
- PIC12CE674/JW
Microcontrollers Microchip Technology PIC12CE674/JW Overview
The Microcontrollers Microchip Technology PIC12CE674/JW is a highly versatile 8-bit microcontroller unit (MCU) equipped with 3.5KB of EPROM/UV memory. Manufactured by Microchip Technology, this MCU is housed in an 8-pin CDIP package, offering robustness in a compact form factor. It is designed to cater to sophisticated control applications where reliability and ease of programming are critical. The PIC12CE674/JW stands out for its low power consumption and extensive feature set, making it an excellent choice for developers looking to implement advanced functionalities in their designs while maintaining cost-efficiency and power effectiveness.
PIC12CE674/JW Features
The PIC12CE674/JW microcontroller incorporates multiple features that enhance its applicability in various demanding applications. Key features include an 8-bit processor, 3.5KB of erasable programmable read-only memory (EPROM), which can be UV erased and reprogrammed. It also supports a wide operating voltage range, making it suitable for diverse electronic environments and conditions. Additional features such as its programmable interrupt capability, watch-dog timer, and low power watchdog ensure optimal performance and reliability in critical systems.
PIC12CE674/JW Applications
- Home Automation Systems: Integrates into devices like smart thermostats and lighting systems, enabling automated control and enhanced user interfaces.
- Automotive Applications: Used in car alarm systems, providing essential services such as monitoring and reporting vehicle status.
- Personal Healthcare Devices: Serves in applications like portable health monitoring gadgets, where its low power usage and high reliability are crucial for consistent performance.
- Consumer Electronics: Employed in appliances such as remote controls and timers, facilitating improved functionality and user experience.
- Industrial Control Systems: Acts as a control unit in automated production lines, where precision and operational stability are needed.
