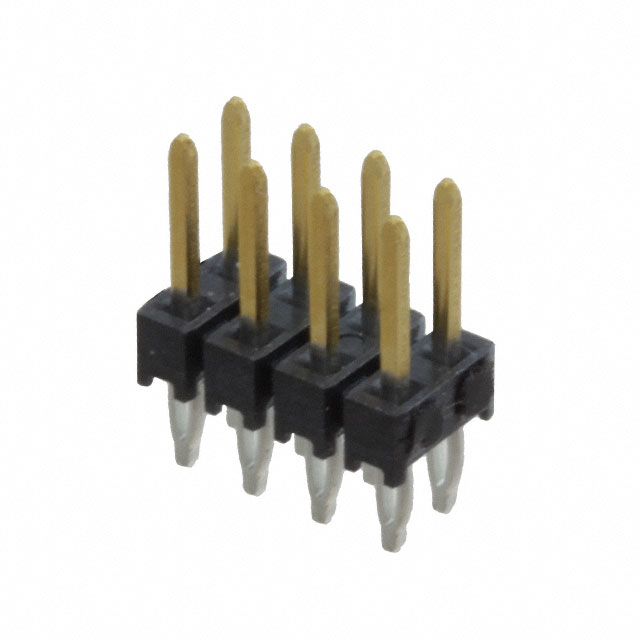

    PHT-104-01-L-D

    Share

    Or copy the link below:

    Mfr.Part #
    PHT-104-01-L-D
    Manufacturer
    Samtec, Inc.
    Package / Case
    Datasheet
    Download
    Description
    CONN HEADER VERT 8POS 2.54MM
    Stock
    3,461
    In Stock ：
    3,461

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Samtec, Inc.
    Product Category :
    Headers, Male Pins
    Number of Positions :
    8
    Factory Lead Time :
    1 Weeks
    JESD-609 Code :
    e3
    Contact Type :
    Male Pin
    Shrouding :
    Unshrouded
    Insulation Color :
    Black
    Current Rating (Amps) :
    4.8A per Contact
    Contact Finish - Post :
    Tin
    Row Spacing - Mating :
    0.100 (2.54mm)
    Option :
    GENERAL PURPOSE
    Series :
    PHT
    MIL Conformance :
    No
    Contact Finish - Mating :
    Gold
    Contact Gender :
    FEMALE
    Mounting Type :
    Through Hole
    IEC Conformance :
    No
    Pitch - Mating :
    0.100 2.54mm
    Material Flammability Rating :
    UL94 V-0
    Contact Shape :
    Square
    Mixed Contacts :
    No
    PCB Contact Pattern :
    RECTANGULAR
    Mating Contact Pitch :
    0.1 inch
    Contact Material :
    Phosphor Bronze
    Termination :
    Press-Fit, Solder
    Overall Contact Length :
    0.452 11.48mm
    Contact Length - Mating :
    0.230 5.84mm
    Number of Conductors :
    ONE
    Packaging :
    Tube
    Number Of PCB Rows :
    2
    Filter Feature :
    No
    Pbfree Code :
    yes
    Published :
    2013
    Plating Thickness :
    10μin
    Body Length or Diameter :
    0.4 inch
    Number of Rows :
    2
    Operating Temperature :
    -55°C~125°C
    Fastening Type :
    Push-Pull
    Reliability :
    COMMERCIAL
    Insulation Material :
    Liquid Crystal Polymer (LCP)
    Reference Standard :
    UL
    DIN Conformance :
    No
    UL Flammability Code :
    94V-0
    Insulation Height :
    0.100 2.54mm
    Number of Positions Loaded :
    All
    RoHS Status :
    ROHS3 Compliant
    Contact Finish Thickness - Mating :
    10.0μin 0.25μm
    Body Depth :
    0.1 inch
    Connector Type :
    Header
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Contact Length - Post :
    0.122 3.10mm
    Style :
    Board to Board
    Introducing Headers, Male Pins Samtec, Inc. PHT-104-01-L-D from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Through Hole, Operating Temperature：-55°C~125°C, PHT-104-01-L-D pinout, PHT-104-01-L-D datasheet PDF, PHT-104-01-L-D amp .Beyond Headers, Male Pins Samtec, Inc. PHT-104-01-L-D ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Samtec, Inc. PHT-104-01-L-D


    PHT Series 2-Row Header Press-Fit, Solder Phosphor Bronze Tube Through Hole Gold Liquid Crystal Polymer (LCP) 8-Position Board to Board 0.100 2.54mm Height

    PHT-104-01-L-D Overview


    This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the PHT Series.Operating temperature is set to -55°C~125°C.

    PHT-104-01-L-D Features


    PHT series


    PHT-104-01-L-D Applications


    There are a lot of Samtec Inc.
    PHT-104-01-L-D Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
