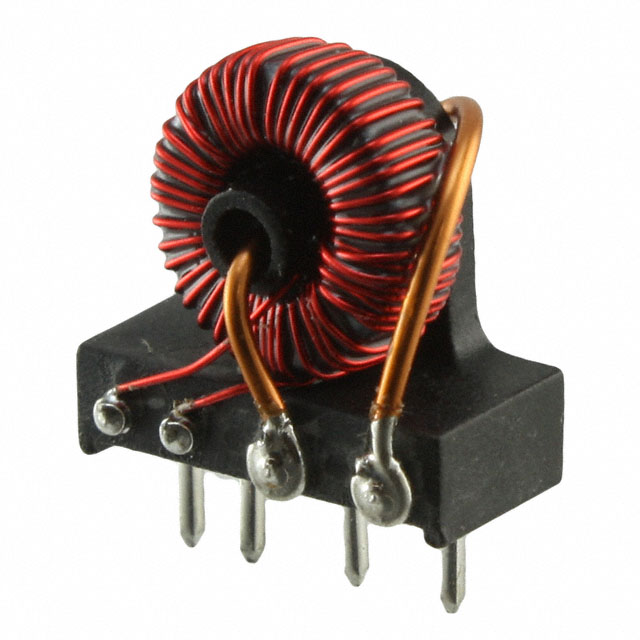

PE-64978NL

Manufacturer :

Pulse Electronics

Product Category :

Current Sense Transformers

Width :

9.65 mm

Product Status :

Active

Mounting :

Through Hole

Operating Temperature :

-40 to 130 °C

Lead Style :

Pin

Weight :

--

Lead/Base Style :

PC Pin

Height Seated (Max) :

0.580 14.73mm

Product Type :

Current Transformers

Shielding :

Unshielded

Current Rating (Amps) :

20 A

Manufacturer :

Pulse

Min Operating Temperature :

-40°C

Subcategory :

Transformers

Frequency :

500kHz

Published :

2005

Termination Style :

PC Pin

Isolation Voltage :

1.25kV

Radiation Hardening :

No

DC Resistance (DCR) :

6mOhm Primary 240mOhm Secondary

Height :

14.73mm

Type :

Invasive

Termination :

PC Pin

Height - Seated (Max) :

0.580 (14.73mm)

Mount :

Through Hole

Length :

13.97 mm

Product Category :

Current Transformers

Brand :

Pulse Electronics

Package :

Tube

ET (Volt-Time) :

-

Turns Ratio :

1:50

Size / Dimension :

0.550Lx0.380W 13.97mmx9.65mm

RoHS Status :

RoHS Compliant

Current Rating :

20A

Factory Lead Time :

9 Weeks

Depth :

9.65mm

RoHS :

Details

Number of Pins :

4

Current Ratio :

50:1

Frequency Range :

200kHz~500kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tube

Turns Ratio - Primary:Secondary :

1:50

Max Operating Temperature :

130°C

Mounting Type :

Through Hole

Ratings :

--

Inductance :

4mH

Series :

THT
