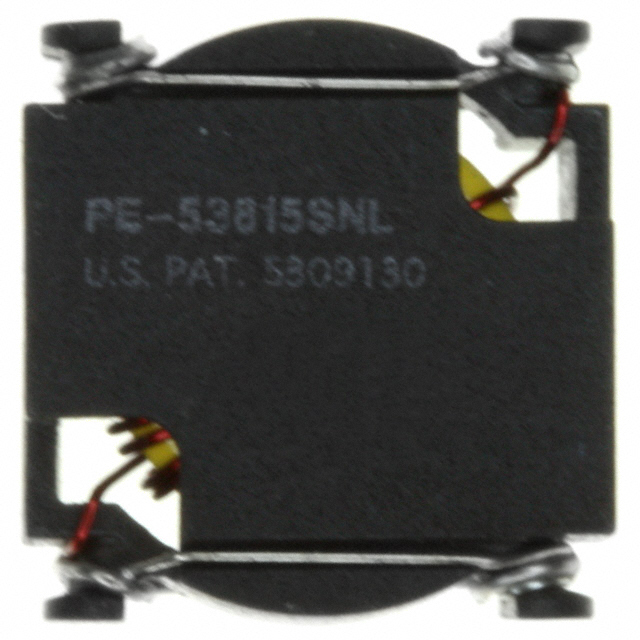

PE-53815SNL

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DC Current :

840mA

Operating Temp Range :

-40C to 130C

Termination :

SMD/SMT

Product Diameter (mm) :

Not Required mm

Height :

9.144mm

Tolerance :

±20%

RoHS Status :

RoHS Compliant

Max DC Current :

840mA

Supplier Device Package :

--

Package :

Bulk

Series :

--

Inductance :

26μH

Operating Temperature :

-40°C~130°C

Current - Saturation :

--

Special Feature :

SIMPLE SWITCHER

HTS Code :

8504.50.80.00

Type :

Toroidal

Inductor Application :

POWER INDUCTOR

Ratings :

--

Current - Saturation (Isat) :

-

Current Rating (Amps) :

840 mA

Pbfree Code :

yes

Product Height (mm) :

9.14 mm

Size / Dimension :

0.440Lx0.435W 11.18mmx11.05mm

Tolerance (+ or -) :

20%

Current Rating :

840mA

DC Resistance (DCR) :

200mOhm

Technology :

Wirewound

Product Length (mm) :

11.18 mm

Shielding :

No

Rad Hardened :

No

Packaging :

Bulk

Package / Case :

Nonstandard

Case/Size Code :

4444

Resistance :

200mOhm

Depth :

11.05mm

Mount :

Surface Mount

Features :

--

Failure Rate :

Not Required

DC Resistance :

0.2 ohm

Shape/Size Description :

RECTANGULAR PACKAGE

Mounting Type :

Surface Mount

Height Seated (Max) :

0.360 9.14mm

Military Standard :

Not

Terminal Placement :

DUAL ENDED

Height - Seated (Max) :

0.360 (9.14mm)

Impedance :

Not Required ohm

Product Depth (mm) :

11.05 mm

Terminal Shape :

WRAPAROUND

Published :

2008

Number of Terminations :

2

Product Status :

Active

ECCN Code :

EAR99

Lead Free :

Lead Free

Factory Lead Time :

15 Weeks

Radiation Hardening :

No

Q @ Freq :

--

Number of Functions :

1

Frequency - Self Resonant :

--

Material - Core :

--
