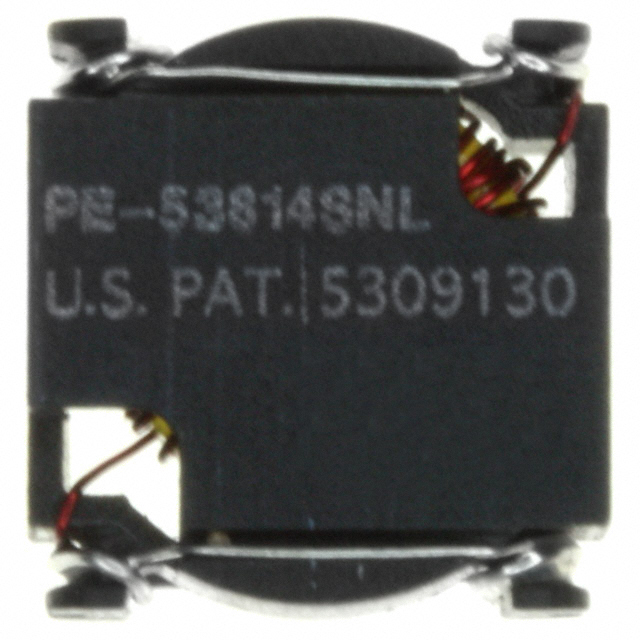

PE-53814SNL

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Terminal Shape :

WRAPAROUND

Frequency - Self Resonant :

-

Current - Saturation (Isat) :

-

Operating Temp Range :

-40C to 125C

Inductor Application :

POWER INDUCTOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DC Resistance :

0.3(TYP)(ohm)

Impedance :

Not Required(ohm)

Operating Temperature :

-40°C~130°C

Resistance :

300mOhm

Number of Terminals :

2

Shielding :

Shielded

DC Resistance (DCR) :

300mOhm

Material - Core :

-

Tolerance :

±20%

Termination Style :

SMD/SMT

Tolerance (+ or -) :

20%

Special Feature :

SIMPLE SWITCHER

Mounting Style :

PCB Mount

Package :

Bulk

Core Type :

Toroidal

Mounting Type :

Surface Mount

Height :

9.144mm

Product Type :

Fixed Inductors

Product Height (mm) :

9.14(mm)

Failure Rate :

Not Required

Supplier Device Package :

-

Number of Terminations :

2

Technology :

Toroid

Application :

Power

Subcategory :

Inductors, Chokes and Coils

Height Seated (Max) :

0.360 9.14mm

Current Rating :

680mA

RoHS :

Details

Product Depth (mm) :

11.05(mm)

Lead Free :

Lead Free

Product Category :

Power Inductors - SMD

Case/Size Code :

4444

Product Status :

Active

Termination :

SMD/SMT

Features :

-

Military Standard :

Not

Brand :

Pulse Electronics

Manufacturer :

Pulse

Rad Hardened :

No

Terminal Placement :

DUAL ENDED

Ratings :

-

Mount :

Surface Mount

Inductance :

39μH

Current Rating (Amps) :

680 mA

HTS Code :

8504.50.80.00

Factory Lead Time :

13 Weeks

Series :

-

Depth :

11.05mm

Package / Case :

Nonstandard

Product :

Power Inductors

Shape/Size Description :

RECTANGULAR PACKAGE

ECCN Code :

EAR99

Height - Seated (Max) :

0.360 (9.14mm)

Packaging :

Bulk

Radiation Hardening :

No

Product Length (mm) :

11.18(mm)

Type :

Toroidal

Number of Functions :

1

Published :

2008

Pbfree Code :

yes

Size / Dimension :

0.440Lx0.435W 11.18mmx11.05mm

Max DC Current :

680mA

Q @ Freq :

-

DC Current :

680mA

Product Diameter (mm) :

Not Required(mm)

RoHS Status :

RoHS Compliant
