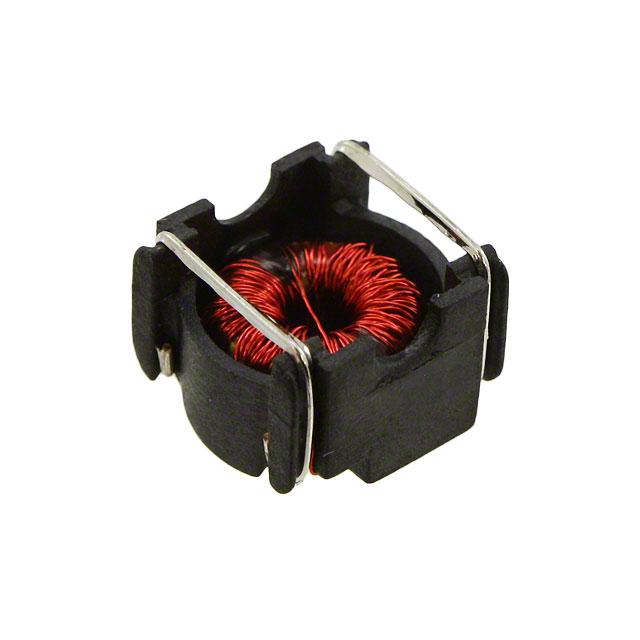

PE-53809SNLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Case/Size Code :

4444

Packaging :

Tape and Reel (TR)

Operating Temperature :

-40°C~130°C

Termination Style :

SMD/SMT

Mounting Type :

Surface Mount

Size / Dimension :

0.440Lx0.435W 11.18mmx11.05mm

Material - Core :

--

Terminal Placement :

DUAL ENDED

Mount :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2008

Current - Saturation (Isat) :

-

Subcategory :

Inductors, Chokes and Coils

Height :

9.144mm

Core Type :

Toroidal

Tolerance :

±20%

Product Status :

Active

Current - Saturation :

--

Pbfree Code :

yes

Height - Seated (Max) :

0.360 (9.14mm)

Product Type :

Power Inductors - SMD

Mounting Style :

PCB Mount

Shape/Size Description :

RECTANGULAR PACKAGE

Current Rating (Amps) :

250 mA

Inductance :

256μH

Ratings :

--

Features :

--

Frequency - Self Resonant :

--

RoHS Status :

RoHS Compliant

Inductor Application :

POWER INDUCTOR

Application :

Power

Current Rating :

250mA

Packing Method :

TR

Product :

Power Inductors

HTS Code :

8504.50.80.00

Package :

Tape and Reel (TR)

Type :

Toroidal

Shielding :

No

Package / Case :

Nonstandard

ECCN Code :

EAR99

Q @ Freq :

--

Special Feature :

SIMPLE SWITCHER

DC Resistance (DCR) :

2.2Ohm

Series :

--

Number of Functions :

1

Terminal Shape :

WRAPAROUND

Supplier Device Package :

--

Rated Current-Max :

0.25A

Number of Terminations :

2

Termination :

SMD/SMT

Height Seated (Max) :

0.360 9.14mm
