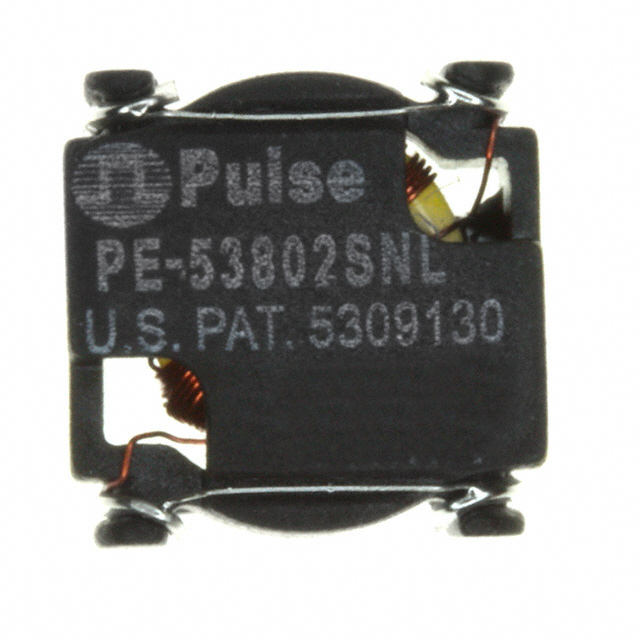

PE-53802SNL

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Height Seated (Max) :

0.270 6.86mm

Type :

Toroidal

Brand :

Pulse Electronics

Military Standard :

Not

Current Rating :

160mA

Inductance Tolerance :

20

Published :

2008

Factory Lead Time :

13 Weeks

Supplier Device Package :

--

Saturation Current :

-

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Product Category :

Power Inductors - SMD

Maximum Operating Temperature :

+ 130 C

Lead Free :

Lead Free

Special Feature :

SIMPLE SWITCHER

Application :

Power

RoHS Status :

RoHS Compliant

Test Frequency :

150 kHz

Mounting Type :

Surface Mount

Product Type :

Fixed Inductors

Height - Seated (Max) :

0.270 (6.86mm)

RMS Current (Irms) :

160 mA

Current Rating (Amps) :

160 mA

Number of Terminations :

2

Product Width :

8.64 mm

Depth :

8.64mm

RoHS :

Details

Pbfree Code :

yes

Resistance :

2.8Ohm

Number of Functions :

1

Max DC Current :

160mA

Packaging :

Bulk

Number of Pins :

20

Terminal Placement :

DUAL ENDED

Length :

8.64 mm

Height :

6.86mm

Tolerance :

±20%

Product :

Power Inductors

Termination Style :

SMD/SMT

Radiation Hardening :

No

Package :

Tube

Current - Saturation :

--

Minimum Operating Temperature :

- 40 C

Product Length :

8.64

Features :

--

Manufacturer :

Pulse

Inductor Application :

POWER INDUCTOR

Package / Case :

Nonstandard

Terminal Shape :

WRAPAROUND

Ratings :

--

Size / Dimension :

0.340Lx0.340W 8.64mmx8.64mm

DC Current :

160mA

DC Resistance (DCR) :

2.8Ohm

Termination :

SMD/SMT

ECCN Code :

EAR99

Core Type :

Toroidal

Subcategory :

Inductors, Chokes and Coils

Operating Temperature :

-40°C~130°C

HTS Code :

8504.50.80.00

Material - Core :

--

Inductance :

178μH

Current - Saturation (Isat) :

-

Frequency - Self Resonant :

--

Case/Size Code :

3434

Width :

8.64 mm

Shape/Size Description :

RECTANGULAR PACKAGE

Mount :

Surface Mount

Q @ Freq :

--

Self Resonant Frequency :

-

Shielding :

No

Mounting Style :

PCB Mount

Product Status :

Active

Series :

--
