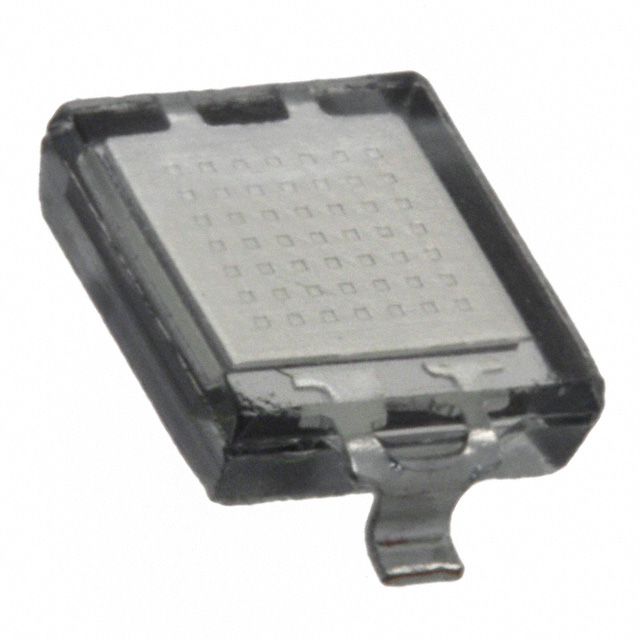

PD70-01C/TR10
Or copy the link below:
- Mfr.Part #
- PD70-01C/TR10
- Manufacturer
- Everlight Electronics
- Package / Case
- 2-SMD, Z-Bend
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 940NM 2SMD
- Stock
- 1,981
- In Stock ：
- 1,981
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Photodiodes
- Reverse Voltage (DC) :
- 32V
- Operating Temperature :
- -25°C~85°C
- Mounting Type :
- Surface Mount
- Shape :
- RECTANGULAR
- Max Reverse Voltage (DC) :
- 32V
- Spectral Range :
- 400nm ~ 1100nm
- Number of Pins :
- 2
- Additional Feature :
- DAYLIGHT FILTER
- Fall Time (Typ) :
- 50 ns
- Infrared Range :
- yes
- Package / Case :
- 2-SMD, Z-Bend
- Wavelength :
- 940nm
- Max Power Dissipation :
- 150mW
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Mount :
- Surface Mount
- HTS Code :
- 8541.40.60.50
- Diode Type :
- Pin
- Published :
- 2005
- RoHS Status :
- ROHS3 Compliant
- Number of Functions :
- 1
- Factory Lead Time :
- 15 Weeks
- Dark Current :
- 5nA
- Semiconductor Material :
- SILICON
- Rise Time :
- 50ns
- Pbfree Code :
- yes
- Configuration :
- Single
- Light Current-Nom :
- 0.035mA
- Packaging :
- Tape and Reel (TR)
- Datasheets
- PD70-01C/TR10
Surface Mount -25°C~85°C Tape & Reel (TR) Wavelength: 940nm 2-SMD, Z-Bend 5nA
PD70-01C/TR10 Overview
Photodiodes are enclosed in Tape & Reel (TR) to prevent damage. Photodiodes are packaged in 2-SMD, Z-Bend packages in order to ensure their safety. When reverse-biased, the photodiodes should not continually exceed 32V. Photodiodes have pins 2. An ideal circuit would allow the photodiodes to release a maximum amount of heat in the form of 150mW heat. A reverse voltage 32V does not affect the photodiodes in the DC circuit. There is 5nA current flowing through a photodiode even in the absence of light input.
PD70-01C/TR10 Features
Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -25°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 400nm ~ 1100nm
PD70-01C/TR10 Applications
There are a lot of Everlight Electronics Co Ltd
PD70-01C/TR10 Photodiodes applications.
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
- Pure UV-C Monitoring
- Sterilization Lamp Monitoring
