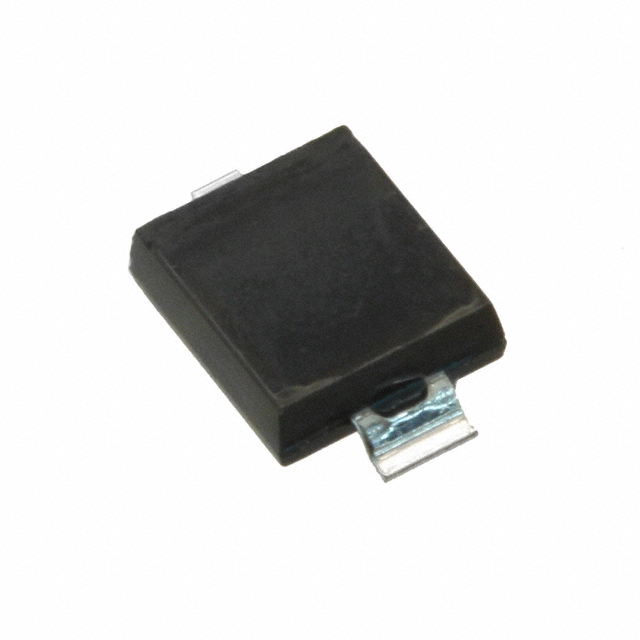

PD70-01B/TR7
Or copy the link below:
- Mfr.Part #
- PD70-01B/TR7
- Manufacturer
- Everlight Electronics
- Package / Case
- 2-SMD, Gull Wing
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 940NM 2SMD GW
- Stock
- 19,427
- In Stock ：
- 19,427
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Photodiodes
- Power Dissipation :
- 150mW
- Infrared Range :
- yes
- RoHS Status :
- ROHS3 Compliant
- Semiconductor Material :
- SILICON
- Size :
- 4.4mm
- Factory Lead Time :
- 15 Weeks
- Shape :
- RECTANGULAR
- Pbfree Code :
- yes
- Max Reverse Voltage (DC) :
- 32V
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Spectral Range :
- 730nm ~ 1100nm
- Published :
- 2012
- Operating Temperature :
- -25°C~85°C
- Additional Feature :
- DAYLIGHT FILTER
- Fall Time (Typ) :
- 50 ns
- Max Power Dissipation :
- 150mW
- HTS Code :
- 8541.40.60.50
- Light Current-Nom :
- 0.035mA
- Mounting Type :
- Surface Mount
- Wavelength :
- 940nm
- Number of Functions :
- 1
- Reverse Breakdown Voltage :
- 32V
- Package / Case :
- 2-SMD, Gull Wing
- Dark Current :
- 5nA
- Rise Time :
- 50ns
- Mount :
- Surface Mount
- Configuration :
- Single
- Packaging :
- Tape and Reel (TR)
- Number of Pins :
- 2
- Diode Type :
- Pin
- Reverse Voltage (DC) :
- 32V
- Datasheets
- PD70-01B/TR7
Surface Mount -25°C~85°C Tape & Reel (TR) Wavelength: 940nm 2-SMD, Gull Wing 5nA
PD70-01B/TR7 Overview
Tape & Reel (TR) is used to protect the photodiodes from damage. A safety package containing the photodiodes is provided for their protection. When the photodiodes are reverse-biased, the voltage should never exceed 32V. A photodiode has a pin number of 2. There was the possibility that photodiodes in a circuit would emit 150mW heat. The reverse anode voltage for the photodiodes should be 32V. In general, the maximum heat generated by photodiodes should be 150mW in a circuit. With the reverse voltage of 32V, the photodiodes in the DC circuit can work properly. The current in a photodiode is 5nA even when there is no light input.
PD70-01B/TR7 Features
Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -25°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 730nm ~ 1100nm
PD70-01B/TR7 Applications
There are a lot of Everlight Electronics Co Ltd
PD70-01B/TR7 Photodiodes applications.
- Shaft encoders
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
