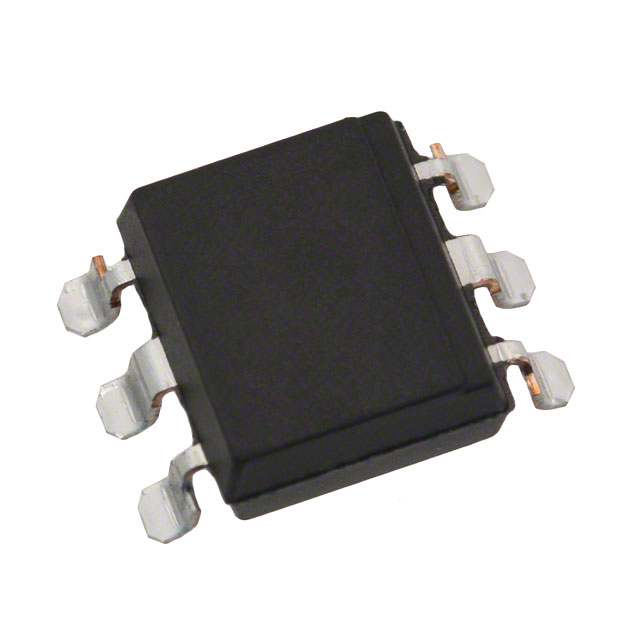

PC900V0NIPXF

Manufacturer :

Sharp Microelectronics

Product Category :

Optoisolators - Logic Output

Voltage - Supply :

3V~15V

Fall Time (Typ) :

500 ns

Terminal Finish :

Tin/Copper (Sn/Cu)

Lead Free :

Lead Free

Power Dissipation :

170mW

Configuration :

COMPLEX

Rise Time :

500ns

Output Current :

50mA

JESD-609 Code :

e2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

UL RECOGNIZED, TTL COMPATIBLE

Series :

OPIC™

Input Type :

DC

Reverse Voltage (DC) :

6V

Packaging :

Cut Tape (CT)

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Number of Channels :

1

Operating Temperature :

-25°C~85°C

Package / Case :

6-SMD, Gull Wing

Hysteresis Ratio-Nom :

0.7

Turn On Delay Time :

6 μs

Reverse Breakdown Voltage :

6V

Propagation Delay tpLH / tpHL (Max) :

6μs, 3μs

Inputs - Side 1/Side 2 :

1/0

Published :

2005

Number of Elements :

1

Mounting Type :

Surface Mount

Voltage - Forward (Vf) (Typ) :

1.1V

Output Type :

Open Collector

Number of Pins :

6

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Max Output Voltage :

16V

Output Current per Channel :

50mA

Forward Current :

50mA

Direction :

Unidirectional

Max Power Dissipation :

170mW

Rise / Fall Time (Typ) :

100ns 50ns

Max Collector Current :

50mA

Propagation Delay :

6 μs

Voltage - Isolation :

5000Vrms
