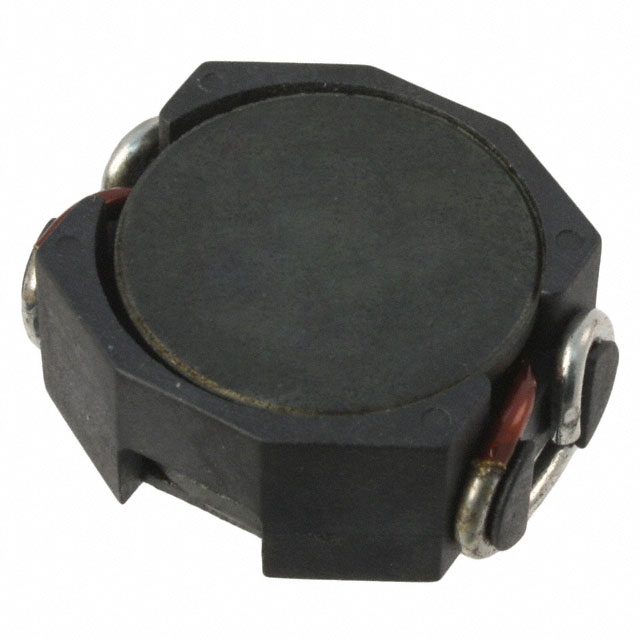

PB2020.102NLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Inductor Application :

POWER INDUCTOR

RoHS Status :

RoHS Compliant

Product Status :

Active

Number of Terminations :

2

Series :

PB2020NL

Material - Core :

--

Termination :

SMD/SMT

Height - Seated (Max) :

0.400 (10.16mm)

Current - Saturation (Isat) :

55A

Current Rating :

23.7A

Pbfree Code :

yes

Terminal Shape :

WRAPAROUND

Height Seated (Max) :

0.400 10.16mm

Type :

Wirewound

DC Resistance (DCR) :

2.2mOhm Max

JESD-609 Code :

e3

Q @ Freq :

--

Terminal Placement :

DUAL ENDED

Operating Temperature :

-40°C~130°C

Current Rating (Amps) :

23.7 A

Size / Dimension :

0.940Lx0.820W 23.87mmx20.83mm

Supplier Device Package :

--

Features :

--

Mounting Type :

Surface Mount

HTS Code :

8504.50.80.00

Shielding :

No

Tolerance :

±20%

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package :

Tape and Reel (TR)

Case/Size Code :

9482

Frequency - Self Resonant :

--

Ratings :

--

Mount :

Surface Mount

Shape/Size Description :

RECTANGULAR PACKAGE

Inductance :

1.2μH

Number of Functions :

1

Package / Case :

Nonstandard

Packing Method :

TR

Current - Saturation :

55A

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Core Material :

Ferrite
