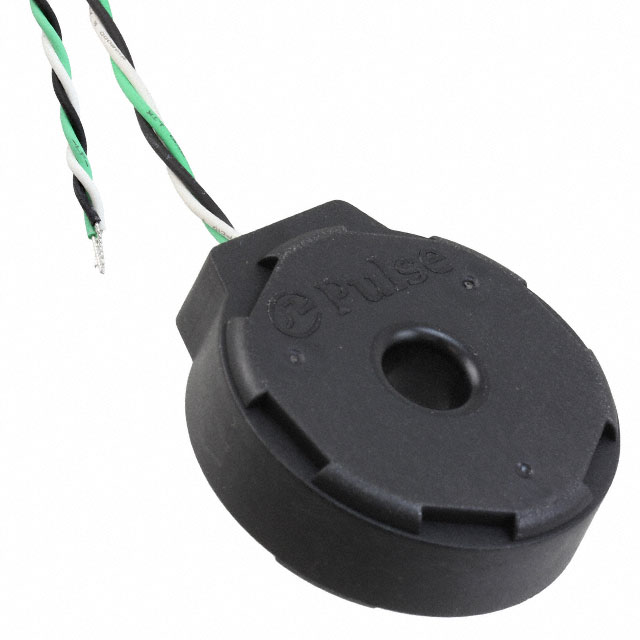

PA3202NL

Manufacturer :

Pulse Electronics

Product Category :

Current Sense Transformers

Subcategory :

Transformers

Product Status :

Active

Product Type :

Current Transformers

Pbfree Code :

yes

RoHS :

Details

Type :

Non-Invasive (Solid Core)

Mount :

Cable, Chassis Mount

Mounting Type :

Chassis Mount

Turns Ratio - Primary:Secondary :

Rogowski Coil

Ratings :

-

Inductance :

1.75mH

Product Category :

Current Transformers

Manufacturer :

Pulse

Size / Dimension :

1.669Lx1.587W 42.40mmx40.30mm

Termination :

Wire Leads

Series :

Sidewinder®, PA32XXNL

DC Resistance (DCR) :

54Ohm Max

Max Operating Temperature :

130°C

Brand :

Pulse Electronics

Frequency Range :

50/60Hz

Current Rating (Amps) :

200 A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Frequency :

60Hz

Factory Lead Time :

11 Weeks

Current Ratio :

-

Package :

Tray

Height - Seated (Max) :

0.580 (14.73mm)

RoHS Status :

RoHS Compliant

Published :

2013

Min Operating Temperature :

-40°C

ET (Volt-Time) :

-

Other Names :

553-2174

Termination Style :

Wire Leads

Height Seated (Max) :

0.580 14.73mm

Current Rating :

200A

Packaging :

Tray
