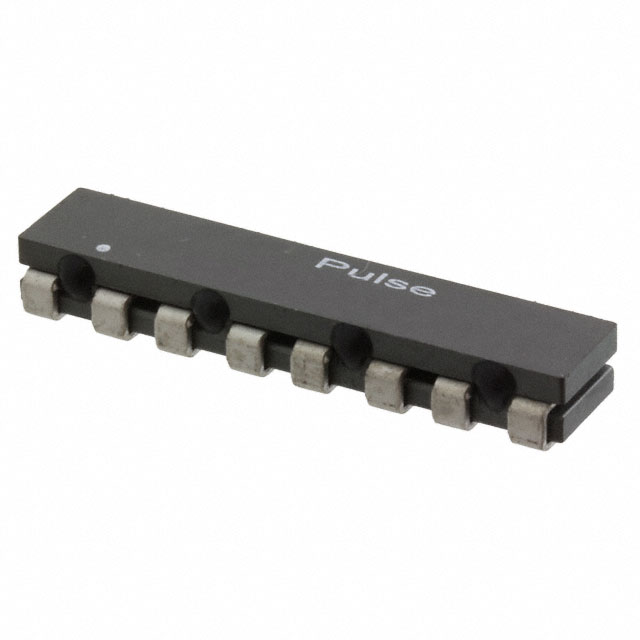

PA1314NLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Tolerance :

±20%

Product Length :

36.58

Depth :

9 mm

Series :

PA1314NL

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Features :

--

Inductance :

370nH

Type :

--

Mount :

Surface Mount

Height :

5.2 mm

Frequency - Self Resonant :

--

Max DC Current :

40 A

Current - Saturation :

--

Material - Core :

--

Height - Seated (Max) :

0.205 (5.20mm)

Radiation Hardening :

No

Min Operating Temperature :

-40 °C

DC Resistance (DCR) :

0.5 mOhm Max

Supplier Device Package :

--

Max Operating Temperature :

130 °C

Mounting Type :

Surface Mount

Product Width :

9

Q @ Freq :

--

Operating Temperature :

-40°C ~ 130°C

Length :

18.288 mm

Inductance Tolerance :

20

Size / Dimension :

0.720 L x 0.354 W (18.29mm x 9.00mm)

Current - Saturation (Isat) :

-

Current Rating :

40A

Ratings :

--

RoHS :

Compliant

Width :

8.9916 mm

Shielding :

Shielded

Current Rating (Amps) :

40 A

Packaging :

Tape and Reel (TR)

Product Status :

Active

Package / Case :

Nonstandard
