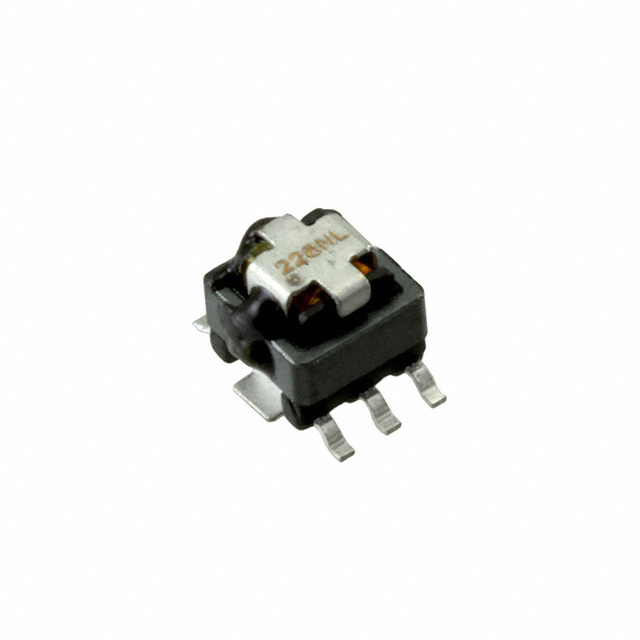

P8228NL
- Mfr.Part #
- P8228NL
- Manufacturer
- Pulse Electronics
- Package / Case
- 100
- Datasheet
- Download
- Description
- CURR SENSE XFMR 1:100 10A SMD
- Stock
- 80
- In Stock :
- 80
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Pulse Electronics
- Product Category :
- Current Sense Transformers
- Inductance :
- 2mH
- Series :
- P822X
- Peak Primary Current :
- 10A
- Product Status :
- Active
- Number of Pins :
- 6
- Lead/Base Style :
- Gull wing
- Height - Seated (Max) :
- 0.190 (4.83mm)
- Turns Ratio - Primary:Secondary :
- 1:100
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 10A
- ET (Volt-Time) :
- -
- Ratings :
- --
- Min Operating Temperature :
- -40°C
- Additional Feature :
- LENGTH DIMENSION INCLUDES TERMINAL ALSO
- Mounting Type :
- Surface Mount
- Current Ratio :
- --
- Package :
- Tray
- Current Rating :
- 10A
- Type :
- Invasive
- Physical Dimension :
- 8.38mm X 7.21mm X 4.83mm
- Factory Lead Time :
- 11 Weeks
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Frequency :
- 1Hz
- Frequency Range :
- 50kHz~1MHz
- Depth :
- 8.38mm
- ECCN Code :
- EAR99
- Size / Dimension :
- 0.284Lx0.330W 7.21mmx8.38mm
- Published :
- 2008
- Surface Mount :
- yes
- Termination Style :
- Gull wing
- Width :
- 7.21mm
- DC Resistance (DCR) :
- 6mOhm Primary 5.5Ohm Secondary
- Max Operating Temperature :
- 130°C
- Package / Case :
- 100
- Height Seated (Max) :
- 0.190 4.83mm
- Datasheets
- P8228NL
