P50LE-100P1-SML-DA

Share

Or copy the link below:

Mfr.Part #
P50LE-100P1-SML-DA
Manufacturer
3M
Package / Case
Datasheet
Download
Description
CONN HEADER SMD 100POS 1.27MM
Stock
26,368
In Stock :
26,368

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
3M
Product Category :
Headers, Male Pins
RoHS Status :
RoHS Compliant
Insulation Height :
0.197 5.00mm
Contact Plating :
Gold
Current Rating :
500mA
Gender :
Male
Number of Positions :
100
Factory Lead Time :
9 Weeks
Min Operating Temperature :
-55°C
Termination :
Solder
Contact Finish Thickness - Mating :
Flash
Housing Material :
Polyphenylene
Contact Finish Thickness - Post :
Flash
Style :
Board to Cable/Wire
Mount :
Surface Mount
Stack Height :
11.8mm
Number of Positions Loaded :
All
Current Rating (Amps) :
0.5A
Max Operating Temperature :
85°C
Contact Material :
Phosphor Bronze
Color :
Brown
Shrouding :
Shrouded - 4 Wall
Contact Finish - Post :
Gold
Pitch - Mating :
0.050 1.27mm
Material Flammability Rating :
UL94 V-0
Contact Type :
Center Strip Contact
Contact Finish - Mating :
Gold
Published :
2006
Series :
Pak 50, P50LE
Connector Type :
PLUG
Pitch :
1.27mm
Insulation Color :
Brown
Operating Temperature :
-55°C~85°C
Number of Rows :
2
Mounting Type :
Surface Mount
Fastening Type :
Latch Holder
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Bulk
Feature :
Board Guide
Insulation Material :
Polyphenylene Sulfide (PPS), Glass Filled
Introducing Headers, Male Pins 3M P50LE-100P1-SML-DA from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~85°C, Mounting Type:Surface Mount, P50LE-100P1-SML-DA pinout, P50LE-100P1-SML-DA datasheet PDF, P50LE-100P1-SML-DA amp .Beyond Headers, Male Pins 3M P50LE-100P1-SML-DA ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

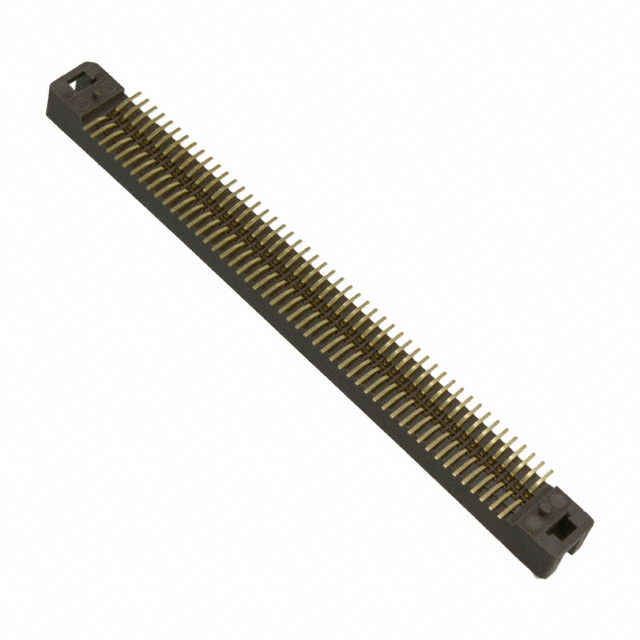

3M P50LE-100P1-SML-DA


Pak 50, P50LE Series 2-Row Plug Solder Phosphor Bronze Bulk Surface Mount Gold Polyphenylene Sulfide (PPS), Glass Filled 100-Position Board to Cable/Wire 0.197 5.00mm Height

P50LE-100P1-SML-DA Overview


The packaging is Plug.Mounting type is Surface Mount.To package the product, we use a Bulk case.This product is from the Pak 50, P50LE Series.It is best used at temperatures below 85°C.-55°C is the minimum temperature this device can operate at.A number of advantages are provided by its Board Guide feature.Mounted by Surface Mount.Device runs at -55°C~85°C Operating Temperature.

P50LE-100P1-SML-DA Features


Pak 50, P50LE series


P50LE-100P1-SML-DA Applications


There are a lot of 3M
P50LE-100P1-SML-DA Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
