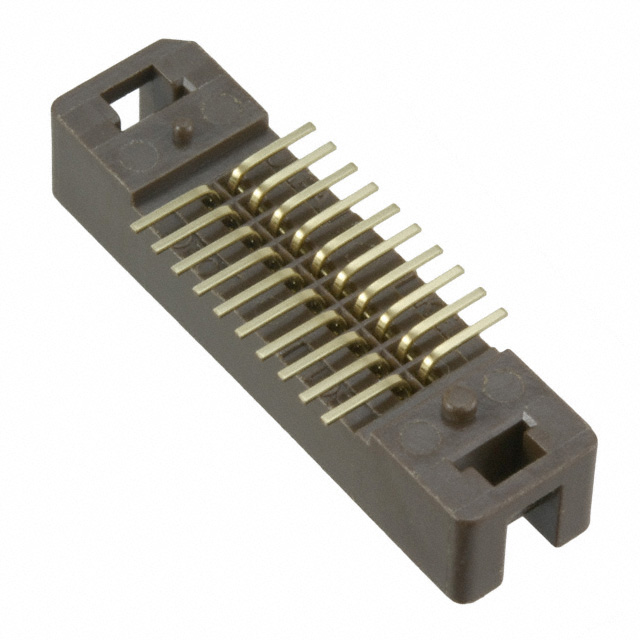

P50LE-020P1-SML-DA
Or copy the link below:
- Mfr.Part #
- P50LE-020P1-SML-DA
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 1.27MM
- Stock
- 22,056
- In Stock ：
- 22,056
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- PLUG
- Contact Finish - Post :
- Gold
- Contact Material :
- Phosphor Bronze
- Stack Height :
- 11.8mm
- Series :
- Pak 50, P50LE
- Min Operating Temperature :
- -55°C
- Contact Mating Length :
- 2.8956mm
- Insulation Color :
- Brown
- Contact Plating :
- Gold
- Insulation Height :
- 0.197 5.00mm
- Factory Lead Time :
- 9 Weeks
- Number of Rows :
- 2
- Packaging :
- Bulk
- Published :
- 2007
- Contact Finish Thickness - Mating :
- Flash
- Contact Finish - Mating :
- Gold
- Style :
- Board to Cable/Wire
- Feature :
- Board Guide
- Pitch - Mating :
- 0.050 1.27mm
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 0.5A
- Fastening Type :
- Latch Holder
- Operating Temperature :
- -55°C~85°C
- Contact Gender :
- Male
- Mount :
- Surface Mount
- Pitch :
- 1.27mm
- Number of Positions Loaded :
- All
- Housing Material :
- Polyphenylene
- Number of Positions :
- 20
- Mounting Type :
- Surface Mount
- Gender :
- Male
- Contact Type :
- Center Strip Contact
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Max Operating Temperature :
- 85°C
- Color :
- Brown
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Post :
- Flash
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 500mA
- Termination :
- Solder
- Datasheets
- P50LE-020P1-SML-DA
Pak 50, P50LE Series 2-Row Plug Solder Phosphor Bronze Bulk Surface Mount Gold Polyphenylene Sulfide (PPS), Glass Filled 20-Position Board to Cable/Wire 0.197 5.00mm Height
P50LE-020P1-SML-DA Overview
Packaging is Plug.Surface Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Pak 50, P50LE Series, it can be found in this category.Temperatures below 85°C are best for using it.There's a minimum temperature of -55°C for this device.With its Board Guide feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The device is operating at -55°C~85°C Operating Temperature.
P50LE-020P1-SML-DA Features
Pak 50, P50LE series
P50LE-020P1-SML-DA Applications
There are a lot of 3M
P50LE-020P1-SML-DA Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
