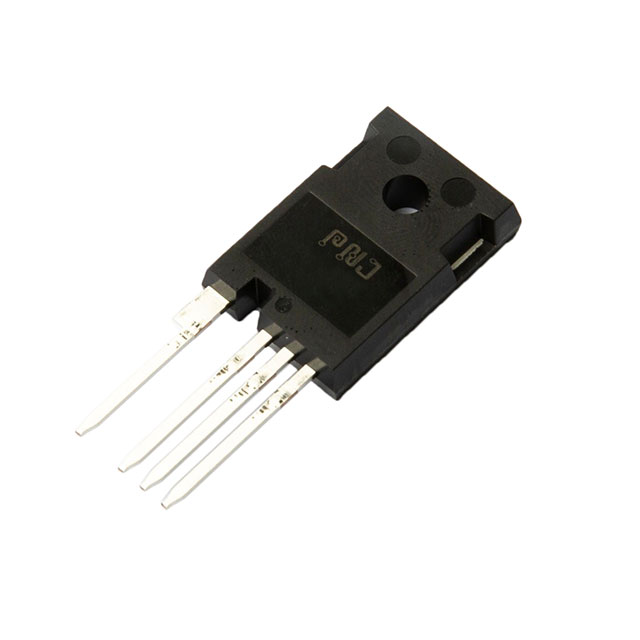

P3M12017K4
Or copy the link below:
- Mfr.Part #
- P3M12017K4
- Manufacturer
- PN Junction Semiconductor
- Package / Case
- TO-247-4
- Datasheet
- Download
- Description
- SICFET N-CH 1200V 151A TO-247-4
- Stock
- 41,069
- In Stock ：
- 41,069
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- PN Junction Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Rds On (Max) @ Id, Vgs :
- 24mOhm @ 75A, 15V
- FET Type :
- N-Channel
- Series :
- P3M
- Current - Continuous Drain (Id) @ 25°C :
- 151A
- Power Dissipation (Max) :
- 789W
- Drive Voltage (Max Rds On, Min Rds On) :
- 15V
- Package :
- Tube
- Product Status :
- Active
- FET Feature :
- -
- Package / Case :
- TO-247-4
- Vgs(th) (Max) @ Id :
- 2.5V @ 75mA (Typ)
- Drain to Source Voltage (Vdss) :
- 1200 V
- Technology :
- SiCFET (Silicon Carbide)
- Supplier Device Package :
- TO-247-4L
- Mounting Type :
- Through Hole
- Vgs (Max) :
- +25V, -10V
- Operating Temperature :
- -55°C ~ 175°C (TJ)
- Datasheets
- P3M12017K4
SiCFET (Silicon Carbide) N-Channel 24mOhm @ 75A, 15V +25V, -10V 1200 V TO-247-4
P3M12017K4 Overview
To operate this transistor, you need to apply a 1200 V drain to source voltage (Vdss).
P3M12017K4 Features
a 1200 V drain to source voltage (Vdss)
P3M12017K4 Applications
There are a lot of ON Semiconductor
P3M12017K4 applications of single MOSFETs transistors.
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
- Lighting, Server, Telecom and UPS.
- DC-to-DC converters
