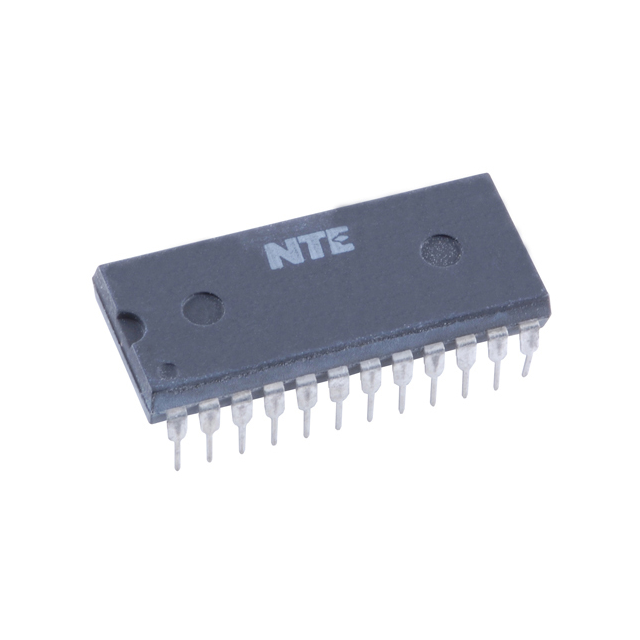

NTE74181

Manufacturer :

NTE Electronics, Inc.

Product Category :

Parity Generators and Checkers

Number of Circuits :

4

Logic IC Type :

Arithmetic Logic Unit

Manufacturer :

NTE Electronics

Package :

Bag

Width :

7.62 mm

Number of Bits :

4

Package / Case :

24-DIP (0.300, 7.62mm)

Voltage - Supply :

4.75 V ~ 5.25 V

Supplier Device Package :

24-PDIP

Number of Functions :

1

Technology :

TTL

Current - Output High, Low :

800µA, 16mA

Number of Terminals :

24

Supply Voltage-Min (Vsup) :

4.75 V

Reach Compliance Code :

Unknown

JESD-30 Code :

R-PDIP-T24

Series :

-

Propagation Delay (tpd) :

50 ns

Temperature Grade :

COMMERCIAL

Package Shape :

RECTANGULAR

Terminal Form :

THROUGH-HOLE

HTS Code :

8542.39.00.01

Additional Feature :

LG_MAX

Family :

TTL/H/L

Supply Voltage-Max (Vsup) :

5.25 V

Length :

30 mm

Operating Temperature :

0°C ~ 70°C

Seated Height-Max :

4.15 mm

Terminal Pitch :

2.54 mm

Surface Mount :

No

Logic Type :

Arithmetic Logic Unit/Function Generator

Terminal Position :

Dual

Product Status :

Active

Mounting Type :

Through Hole
