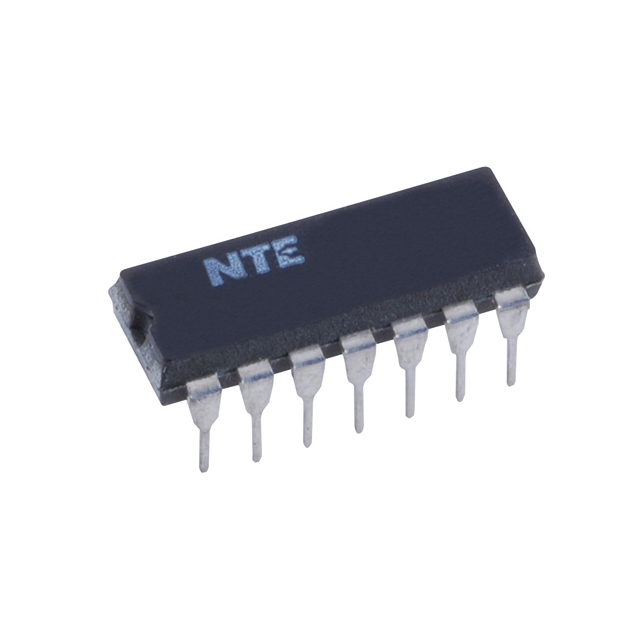

NTE74C14

Manufacturer :

NTE Electronics, Inc.

Product Category :

Gates and Inverters

Supplier Device Package :

14-DIP

Operating Temperature Classification :

Industrial

Pin Count :

14

Operating Supply Voltage (Typ) :

3.3/5/9(V)

Operating Temperature :

-40°C ~ 85°C (TA)

Operating Supply Voltage (Max) :

15(V)

Logic IC Type :

Buffer

Family :

CMOS

Logic Type :

Inverter

Supply Voltage-Max (Vsup) :

15 V

Length :

19.95 mm

Pbfree Code :

yes

Voltage - Supply :

3V ~ 15V

Package Shape :

RECTANGULAR

Features :

Schmitt Trigger

Temperature Grade :

Industrial

Number of Terminals :

14

Additional Feature :

LENGTH MAX

Mounting Type :

Through Hole

Input Type :

Schmitt Trigger

Package Type :

DIP

Operating Supply Voltage (Min) :

3(V)

Product Status :

Active

Technology :

CMOS

Rad Hardened :

No

Number of Functions :

6

Terminal Pitch :

2.54 mm

Number of Elements :

6

Mounting :

Through Hole

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package :

Bag

Manufacturer :

NTE Electronics

Number of Circuits :

6

Seated Height-Max :

5.08 mm

JESD-30 Code :

R-PDIP-T14

Number of Inputs :

1

Supply Voltage-Min (Vsup) :

3 V

HTS Code :

8542.39.00.01

Surface Mount :

No

Series :

74C

Terminal Form :

THROUGH-HOLE

Propagation Delay (tpd) :

400 ns

Package / Case :

14-DIP (0.300, 7.62mm)

Output Type :

Schmitt Trigger

Operating Temp Range :

-40C to 85C

Terminal Position :

Dual

Current - Quiescent (Max) :

15 µA

Width :

7.62 mm

Max Propagation Delay @ V, Max CL :

200ns @ 10V, 50pF

Reach Compliance Code :

Unknown

Current - Output High, Low :

8mA, 8mA
