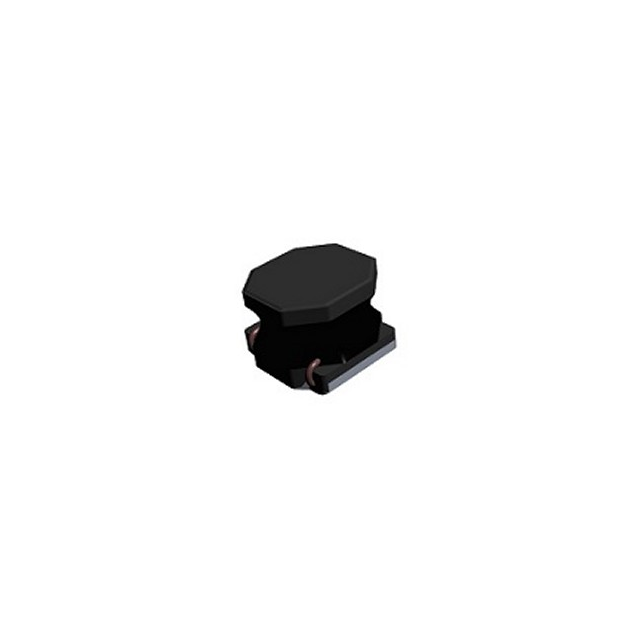

NRM6045T151MMRRV

Manufacturer :

TAIYO YUDEN

Product Category :

Fixed Inductors

Tolerance :

±20%

Q @ Freq :

-

Package / Case :

Nonstandard

Product Status :

Active

Core Type :

Wirewound

Type :

Drum Core, Wirewound

Manufacturer :

Taiyo Yuden

Diameter :

-

Height :

4.5 mm

Termination Style :

SMD/SMT

Core Material :

Ferrite

Length :

6 mm

Operating Temperature :

-40°C ~ 125°C

Mounting Style :

PCB Mount

Size / Dimension :

0.236" L x 0.236" W (6.00mm x 6.00mm)

Product Type :

Fixed Inductors

Product Category :

Power Inductors - SMD

Inductance Frequency - Test :

100 kHz

Brand :

Taiyo Yuden

Shielding :

Unshielded

Ratings :

AEC-Q200

Package :

Digi-Reel?

Material - Core :

Ferrite

DC Resistance (DCR) :

816mOhm Max

RoHS :

Details

Series :

NR, M Type

Features :

-

Minimum Operating Temperature :

- 40 C

Application :

Power

Frequency - Self Resonant :

3.5MHz

Subcategory :

Inductors, Chokes and Coils

Saturation Current :

830 mA

Width :

6 mm

Inductance :

150 µH

Height - Seated (Max) :

0.177" (4.50mm)

Self Resonant Frequency :

3.5 MHz

Product :

Power Inductors

Qualification :

AEC-Q200

Packaging :

Cut Tape

Maximum Operating Temperature :

+ 125 C

Supplier Device Package :

-

Current Rating (Amps) :

480 mA

Mounting Type :

Surface Mount

Termination :

Standard
