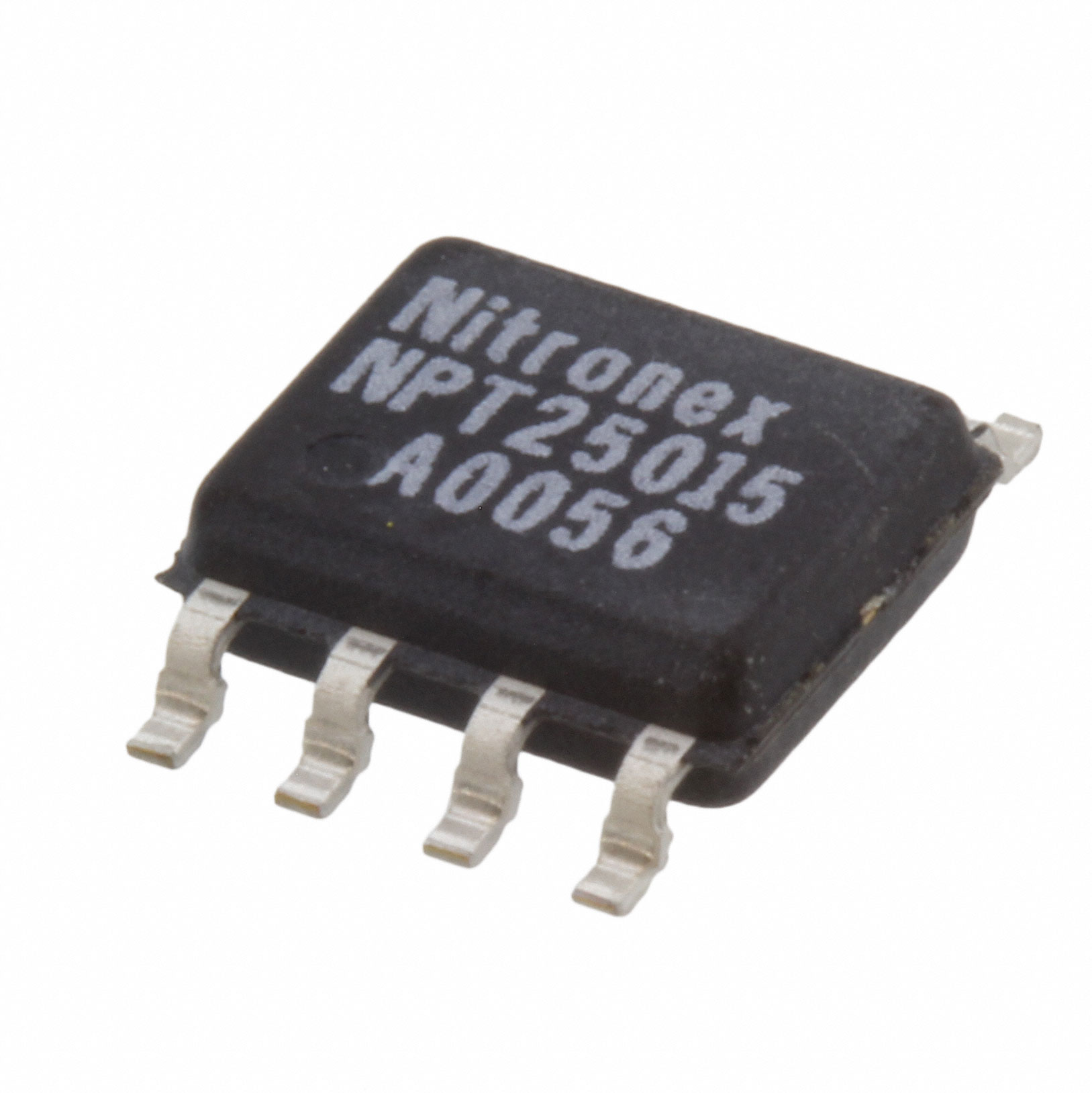

NPT25015D

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Current - Test :

200mA

Operating Temperature (Max) :

85°C

Frequency :

0Hz~3GHz

Transistor Element Material :

SILICON

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Factory Lead Time :

2 Weeks

JESD-30 Code :

R-PDSO-G8

RoHS Status :

ROHS3 Compliant

DS Breakdown Voltage-Min :

100V

Configuration :

Single

Voltage - Rated :

100V

Voltage - Test :

28V

Package / Case :

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Published :

2013

Additional Feature :

High Reliability

Operating Temperature (Min) :

-40°C

Surface Mount :

yes

Current Rating :

5A

Gain :

14dB

FET Technology :

HIGH ELECTRON MOBILITY

Polarity/Channel Type :

N-Channel

Number of Elements :

1

Power Dissipation Ambient-Max :

28W

Power - Output :

1.5W

Drain-source On Resistance-Max :

0.5Ohm

Transistor Type :

HEMT

Operating Mode :

Depletion Mode

Terminal Form :

Gull wing

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Terminations :

8

Terminal Position :

Dual

Case Connection :

SOURCE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Packaging :

Tube
